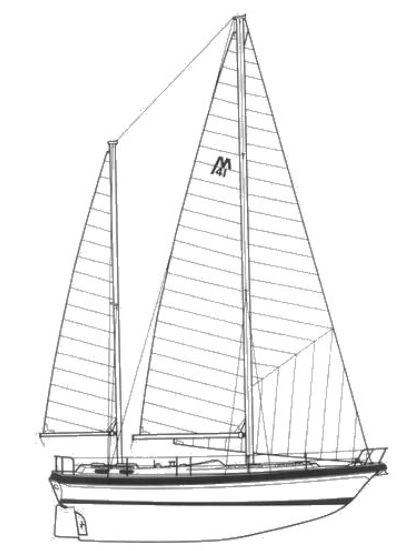

MORGAN OI 416 KETCH
Description
The MORGAN OI 416 KETCH is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 41.000 ft |
The standard boat dimensions
| i | 55 ft |
|---|---|
| j | 15 ft |
| p | 48 ft |
| e | 13 ft |
| p2 | 34 ft |
| e2 | 9 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 55 ft | 15 ft | 48 ft | 13 ft | 34 ft | 9 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 55 ft - (16764 mm) |
| Foot | 25 ft - (7620 mm) |
| Leech | 51 ft - (15545 mm) |
| Perc LP | * 165 |
| Area | * 1031 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 34 ft - (10363 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 34.62 ft - (10552 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 34.87 ft - (10628 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 156.74 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 48 ft - (14630 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech-AftHdBd | * 49.02 ft - (14941 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 49.29 ft - (15024 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 322.15 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 53 ft - (16154 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 50 ft - (15240 mm) |
| Percentage LP | * 125.67 % |
| Length Perpendicular | * 18.85 ft - (5745 mm) |
| Deck Angle | * 4.28 ° |
| Area | * 499.48 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 45.61 ft - (13902 mm) |
| Foot | * 19.4 ft - (5913 mm) |
| Leech | * 40.58 ft - (12369 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 393.37 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 56 ft - (17069 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 52.5 ft - (16002 mm) |
| Perc LP | * 165 |
| Area | * 1134 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 53 ft - (16154 mm) |
| Foot | 24 ft - (7315 mm) |
| Leech | 50 ft - (15240 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.5 ft - (6858 mm) |
| Deck Angle | * 5.1 ° |
| Area | * 596.28 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 16.5 ft - (5029 mm) |
| Leech | 48 ft - (14630 mm) |
| Percentage LP | * 101.2 % |
| Length Perpendicular | * 15.18 ft - (4627 mm) |
| Deck Angle | * 7.81 ° |
| Area | * 394.71 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
