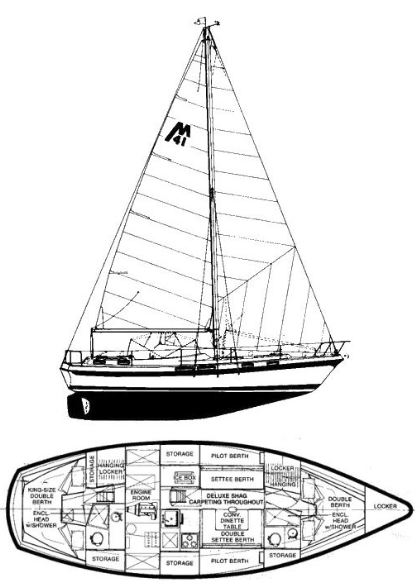

MORGAN OI 41
Description
The MORGAN OI 41 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 41.000 ft |
The standard boat dimensions
| i | 49 ft |
|---|---|
| j | 17 ft |
| p | 42.25 ft |
| e | 17 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 49 ft | 17 ft | 42.25 ft | 17 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 41.49 ft - (12646 mm) |
| Foot | * 22.84 ft - (6962 mm) |
| Leech | * 35.54 ft - (10833 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.55 ft - (5959 mm) |
| Deck Angle | * 12 ° |
| Area | * 405.56 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 51 ft - (15545 mm) |
| Foot | 30 ft - (9144 mm) |
| Leech | 47 ft - (14326 mm) |
| Perc LP | * 165 |
| Area | * 1148 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 48.25 ft - (14707 mm) |
| Foot | 27.67 ft - (8434 mm) |
| Leech | 45.5 ft - (13868 mm) |
| Percentage LP | * 150.35 % |
| Length Perpendicular | * 25.56 ft - (7791 mm) |
| Deck Angle | * 3.4 ° |
| Area | * 616.56 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 42.25 ft - (12878 mm) |
| Foot | * 17 ft - (5182 mm) |
| Leech-AftHdBd | * 44.71 ft - (13628 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 44.99 ft - (13713 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 368.2 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.27 ft - (15017 mm) |
| Foot | * 27.73 ft - (8452 mm) |
| Leech | * 46.07 ft - (14042 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.5 ft - (7772 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 628.15 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
