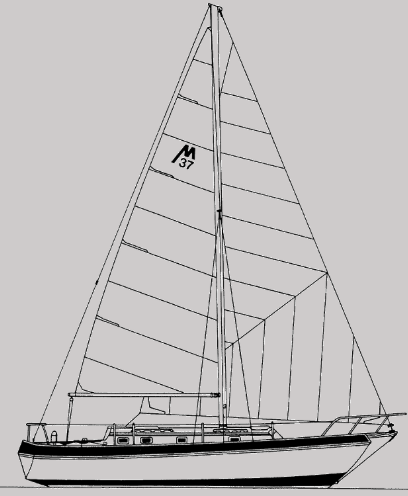

Morgan OI 37/372
Description
The Morgan OI 37/372 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 37.000 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 13.90 ft |
| p | 36.50 ft |
| e | 13.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43 ft | 13.90 ft | 36.50 ft | 13.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36.5 ft - (11125 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Leech-AftHdBd | * 38.19 ft - (11640 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 38.47 ft - (11726 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 254.16 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.93 ft - (13085 mm) |
| Foot | * 22.47 ft - (6849 mm) |
| Leech | * 40.36 ft - (12302 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.85 ft - (6355 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 447.58 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.15 ft - (11019 mm) |
| Foot | * 18.44 ft - (5621 mm) |
| Leech | * 31.33 ft - (9549 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 15.98 ft - (4871 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 288.84 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 42.93 ft - (13085 mm) |
| Foot | * 22.94 ft - (6992 mm) |
| Leech | * 39.5 ft - (12040 mm) |
| Perc LP | * 165 |
| Area | * 739 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42.5 ft - (12954 mm) |
| Foot | 19.5 ft - (5944 mm) |
| Leech | 39.5 ft - (12040 mm) |
| Percentage LP | * 129.86 % |
| Length Perpendicular | * 18.05 ft - (5502 mm) |
| Deck Angle | * 4.29 ° |
| Area | * 383.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 43 ft - (13106 mm) |
| Foot | 26 ft - (7925 mm) |
| Leech | 38 ft - (11582 mm) |
| Percentage LP | * 163.74 % |
| Length Perpendicular | * 22.76 ft - (6937 mm) |
| Deck Angle | * 11 ° |
| Area | * 489.33 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
