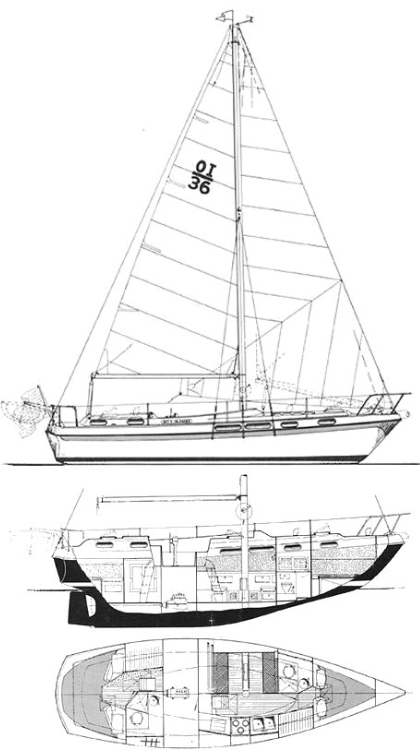

Morgan Oi 36 Sloop
Description
The MORGAN OI 36 SLOOP is a sailboat designed by Charley Morgan. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 43.17 ft |
|---|---|
| j | 14.92 ft |
| p | 35.50 ft |
| e | 14.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43.17 ft | 14.92 ft | 35.50 ft | 14.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 35.5 ft - (10820 mm) |
| Foot | 14.5 ft - (4420 mm) |
| Leech | * 38.19 ft - (11640 mm) |
| Tack Angle | * 90.31 ° |
| Diagonal | 38.42 ft - (11710 mm) |
| Head (inches) | 5 in - (127 mm) |
| Area | * 264.02 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 33.92 ft - (10339 mm) |
| Percentage LP | * 98.86 % |
| Length Perpendicular | * 14.75 ft - (4496 mm) |
| Deck Angle | * 10.76 ° |
| Area | * 287.6 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 16 ft - (4877 mm) |
| Leech | 37.5 ft - (11430 mm) |
| Percentage LP | * 95.38 % |
| Length Perpendicular | * 14.23 ft - (4337 mm) |
| Deck Angle | * 8.11 ° |
| Area | * 298.92 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 40.75 ft - (12421 mm) |
| Foot | 12.42 ft - (3786 mm) |
| Leech | 35.33 ft - (10769 mm) |
| Percentage LP | * 68.97 % |
| Length Perpendicular | * 10.29 ft - (3136 mm) |
| Deck Angle | * 14.97 ° |
| Area | * 209.7 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 34.5 ft - (10516 mm) |
| Foot | 16.83 ft - (5130 mm) |
| Leech | * 31.32 ft - (9546 mm) |
| Percentage LP | * 102.14 % |
| Length Perpendicular | * 15.24 ft - (4645 mm) |
| Deck Angle | * 6.03 ° |
| Area | * 262.91 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 24.5 ft - (7468 mm) |
| Leech | 39 ft - (11887 mm) |
| Percentage LP | * 149.8 % |
| Length Perpendicular | * 22.35 ft - (6812 mm) |
| Deck Angle | * 5.12 ° |
| Area | * 469.33 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 20.75 ft - (6325 mm) |
| Leech | 37.25 ft - (11354 mm) |
| Percentage LP | * 123.26 % |
| Length Perpendicular | * 18.39 ft - (5605 mm) |
| Deck Angle | * 8.51 ° |
| Area | * 386.23 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 21.92 ft - (6681 mm) |
| Leech | 39 ft - (11887 mm) |
| Percentage LP | * 135.12 % |
| Length Perpendicular | * 20.16 ft - (6145 mm) |
| Deck Angle | * 4.07 ° |
| Area | * 423.3 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 43.39 ft - (13225 mm) |
| Foot | * 24.62 ft - (7504 mm) |
| Leech | * 39.92 ft - (12168 mm) |
| Perc LP | * 165 % |
| Area | * 801 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 20.5 ft - (6248 mm) |
| Foot | 8.42 ft - (2566 mm) |
| Leech | 16.5 ft - (5029 mm) |
| Perc LP | * 43.63 % |
| Length Perp | * 6.51 ft - (1984 mm) |
| Deck Angle | * 20.29 ° |
| Area | * 66.74 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 14.68 ft - (4474 mm) |
| Foot | 9.25 ft - (2819 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Length Perp | * 12.23 ft - (3728 mm) |
| Tack Angle | * 8.25 ° |
| Area | * 61 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
