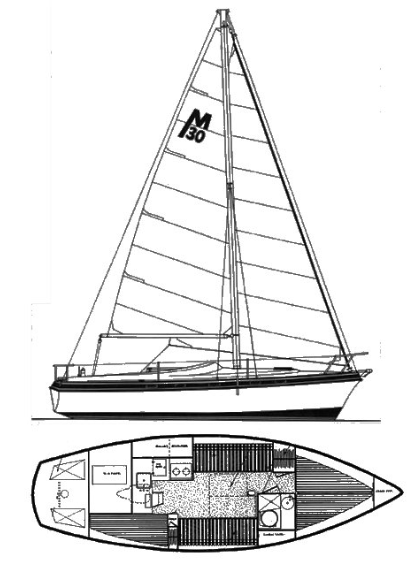

Morgan OI 30
Description
The Morgan OI 30 is a mid-sized cruiser. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 30.000 ft |
| LOA | 30.000 ft |
| LWL | 21.080 ft |
| Beam | 8.750 ft |
| Displacement | 7800 lb |
| Max Draft | 4.830 ft |
The standard boat dimensions
| i | 35.50 ft |
|---|---|
| j | 11 ft |
| p | 30 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35.50 ft | 11 ft | 30 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30 ft - (9144 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 31.67 ft - (9653 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 31.92 ft - (9729 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 185.6 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.73 ft - (9062 mm) |
| Foot | * 14.49 ft - (4417 mm) |
| Leech | * 25.95 ft - (7910 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 188.01 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 35.31 ft - (10762 mm) |
| Foot | * 17.7 ft - (5395 mm) |
| Leech | * 33.28 ft - (10144 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 291.3 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 19 ft - (5791 mm) |
| Leech | 33 ft - (10058 mm) |
| Perc LP | * 165 |
| Area | * 513 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
