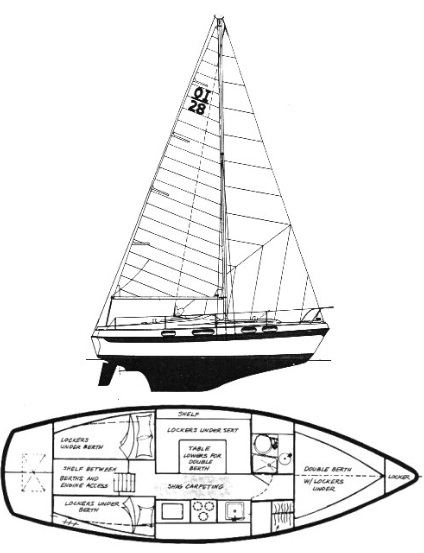

MORGAN OI 28
Description
The MORGAN OI 28 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 28.000 ft |
The standard boat dimensions
| i | 35.46 ft |
|---|---|
| j | 10.50 ft |
| p | 30 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35.46 ft | 10.50 ft | 30 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 35.13 ft - (10708 mm) |
| Foot | * 17.32 ft - (5279 mm) |
| Leech | * 32.32 ft - (9851 mm) |
| Perc LP | * 165 |
| Area | * 456 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 33.75 ft - (10287 mm) |
| Foot | 15.083 ft - (4597 mm) |
| Leech | 32 ft - (9754 mm) |
| Percentage LP | * 135.24 % |
| Length Perpendicular | * 14.2 ft - (4328 mm) |
| Deck Angle | * 3.17 ° |
| Area | * 239.69 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30 ft - (9144 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 31.67 ft - (9653 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 31.92 ft - (9729 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 185.6 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 35.167 ft - (10719 mm) |
| Foot | 16.75 ft - (5105 mm) |
| Leech | 33.5 ft - (10211 mm) |
| Percentage LP | * 150.29 % |
| Length Perpendicular | * 15.78 ft - (4810 mm) |
| Deck Angle | * 3.1 ° |
| Area | * 277.47 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.59 ft - (9019 mm) |
| Foot | * 13.74 ft - (4188 mm) |
| Leech | * 26.02 ft - (7931 mm) |
| Percentage LP | * 115.05 % |
| Length Perpendicular | * 12.08 ft - (3682 mm) |
| Deck Angle | * 11.95 ° |
| Area | * 178.74 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
