MORGAN KAUFMAN 49
Description

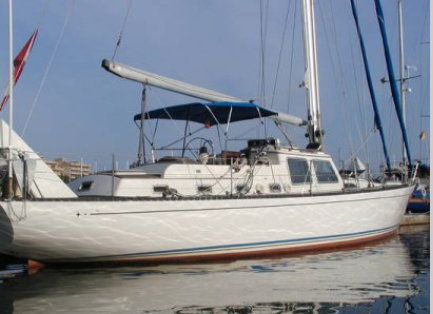

The MORGAN KAUFMAN 49 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 49.000 ft |
The standard boat dimensions
| i | 50 ft |
|---|---|
| j | 19 ft |
| p | 54.04 ft |
| e | 16.01 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50 ft | 19 ft | 54.04 ft | 16.01 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 50.81 ft - (15487 mm) |
| MidGirth | * 34.2 ft - (10424 mm) |
| Foot | * 34.2 ft - (10424 mm) |
| Perc LP | * 180 |
| Area | 1477.05 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 54.04 ft - (16471 mm) |
| Foot | * 16.01 ft - (4880 mm) |
| Leech-AftHdBd | * 55.68 ft - (16971 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 55.82 ft - (17014 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 432.17 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 50.81 ft - (15487 mm) |
| Foot | * 31.4 ft - (9571 mm) |
| Leech | * 47.21 ft - (14390 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 28.5 ft - (8687 mm) |
| Deck Angle | * 4 ° |
| Area | 724.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.79 ft - (13042 mm) |
| Foot | * 26 ft - (7925 mm) |
| Leech | * 36.07 ft - (10994 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 21.85 ft - (6660 mm) |
| Deck Angle | * 12 ° |
| Area | 467.49 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
