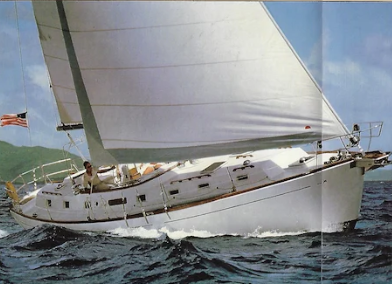

Morgan 46 Sloop
Description
The MORGAN 46 SLOOP is a sailboat designed by Morgan Yachts. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 51 ft |
|---|---|
| j | 17.60 ft |
| p | 44.85 ft |
| e | 20.24 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 51 ft | 17.60 ft | 44.85 ft | 20.24 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 44.85 ft - (13670 mm) |
| Foot | * 20.24 ft - (6169 mm) |
| Leech | * 48.27 ft - (14713 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 48.56 ft - (14801 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 463.47 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 43.16 ft - (13155 mm) |
| Foot | * 23.62 ft - (7199 mm) |
| Leech | * 37.01 ft - (11281 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.24 ft - (6169 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 436.79 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 51.25 ft - (15621 mm) |
| Foot | * 28.69 ft - (8745 mm) |
| Leech | * 47.94 ft - (14612 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 26.4 ft - (8047 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 676.48 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 51.25 ft - (15621 mm) |
| Foot | * 29.91 ft - (9117 mm) |
| Leech | * 45.61 ft - (13902 mm) |
| Perc LP | * 150 % |
| Length Perp | * 26.4 ft - (8047 mm) |
| Deck Angle | * 8.99 ° |
| Area | * 676.52 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 51.25 ft - (15621 mm) |
| Foot | * 29.04 ft - (8851 mm) |
| Leech | * 47.15 ft - (14371 mm) |
| Perc LP | * 165 % |
| Area | * 1116 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 29.67 ft - (9043 mm) |
| Foot | * 13.41 ft - (4087 mm) |
| Leech | * 23.87 ft - (7276 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.56 ft - (3219 mm) |
| Deck Angle | * 19 ° |
| Area | * 156.68 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 19.49 ft - (5941 mm) |
| Foot | * 17.92 ft - (5462 mm) |
| Leech | * 16.24 ft - (4950 mm) |
| Length Perp | * 16.24 ft - (4950 mm) |
| Tack Angle | * -25 ° |
| Area | * 136 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | 15 ft - (4572 mm) |
| Foot | 21 ft - (6401 mm) |
| Leech | 29 ft - (8839 mm) |
| Length Perp | * 16.24 ft - (4950 mm) |
| Tack Angle | * 29.07 ° |
| Area | * 151 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
