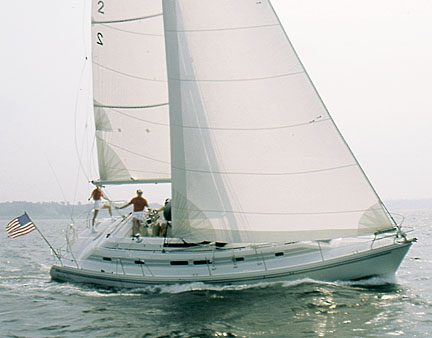

Morgan 45/Catalina 45
Description
The MORGAN 45/CATALINA 45 is a cruising yacht designed by Charlie Morgan. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Charlie Morgan |
|---|---|
| Length | 45.250 ft |
| LOA | 38.420 ft |
| LWL | 32.820 ft |
| Beam | 12.330 ft |
| Displacement | 19500 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 52.75 ft |
|---|---|
| j | 17 ft |
| p | 46 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 52.75 ft | 17 ft | 46 ft | 16 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46 ft - (14021 mm) |
| Foot | * 16 ft - (4877 mm) |
| Leech | * 47.89 ft - (14597 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 48.17 ft - (14682 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 377.72 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 44.34 ft - (13515 mm) |
| Foot | * 22.54 ft - (6870 mm) |
| Leech | * 38.46 ft - (11723 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.55 ft - (5959 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 433.41 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 24 ft - (7315 mm) |
| Leech | 48 ft - (14630 mm) |
| Percentage LP | * 129.94 % |
| Length Perpendicular | * 22.09 ft - (6733 mm) |
| Deck Angle | * 5.16 ° |
| Area | * 574.32 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 52.65 ft - (16048 mm) |
| Foot | * 27.48 ft - (8376 mm) |
| Leech | * 49.48 ft - (15082 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.5 ft - (7772 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 671.25 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 52.65 ft - (16048 mm) |
| Foot | * 28.58 ft - (8711 mm) |
| Leech | * 47.22 ft - (14393 mm) |
| Perc LP | * 150 % |
| Length Perp | * 25.5 ft - (7772 mm) |
| Deck Angle | * 8.98 ° |
| Area | * 671.27 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 52.65 ft - (16048 mm) |
| Foot | * 28.05 ft - (8550 mm) |
| Leech | * 48.44 ft - (14765 mm) |
| Perc LP | * 165 % |
| Area | * 1108 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 52.65 ft - (16048 mm) |
| MidGirth | * 30.6 ft - (9327 mm) |
| Foot | * 30.6 ft - (9327 mm) |
| Perc LP | * 180 % |
| Area | * 1369 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 30.48 ft - (9290 mm) |
| Foot | * 12.75 ft - (3886 mm) |
| Leech | * 25 ft - (7620 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.2 ft - (3109 mm) |
| Deck Angle | * 19.03 ° |
| Area | * 155.4 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 17.55 ft - (5349 mm) |
| Foot | * 16.14 ft - (4919 mm) |
| Leech | * 14.63 ft - (4459 mm) |
| Length Perp | * 14.63 ft - (4459 mm) |
| Tack Angle | * -25 ° |
| Area | * 110 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
