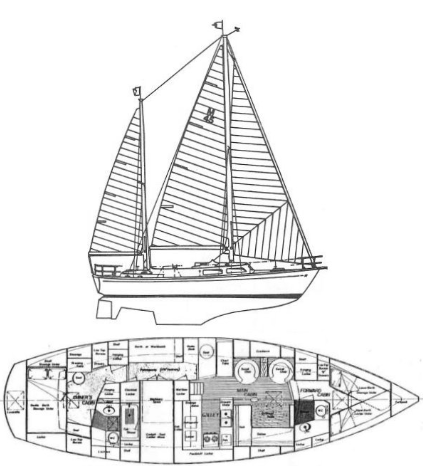

MORGAN 452 KETCH
Description
The MORGAN 452 KETCH is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 45.000 ft |
The standard boat dimensions
| i | 50.50 ft |
|---|---|
| j | 16.75 ft |
| p | 43.45 ft |
| e | 14.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.50 ft | 16.75 ft | 43.45 ft | 14.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.45 ft - (13244 mm) |
| Foot | * 14.83 ft - (4520 mm) |
| Leech-AftHdBd | * 45.26 ft - (13795 mm) |
| Tack Ang | * 88.01 ° |
| Diag (clew/head) | * 45.42 ft - (13844 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 321.84 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 50.55 ft - (15408 mm) |
| Foot | * 27.17 ft - (8281 mm) |
| Leech | * 47.42 ft - (14454 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.13 ft - (7660 mm) |
| Deck Angle | * 4 ° |
| Area | 635.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.56 ft - (12972 mm) |
| Foot | * 22.32 ft - (6803 mm) |
| Leech | * 36.74 ft - (11198 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.26 ft - (5870 mm) |
| Deck Angle | * 12 ° |
| Area | 409.92 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 50.55 ft - (15408 mm) |
| MidGirth | * 30.15 ft - (9190 mm) |
| Foot | * 30.15 ft - (9190 mm) |
| Perc LP | * 180 |
| Area | 1295.47 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
