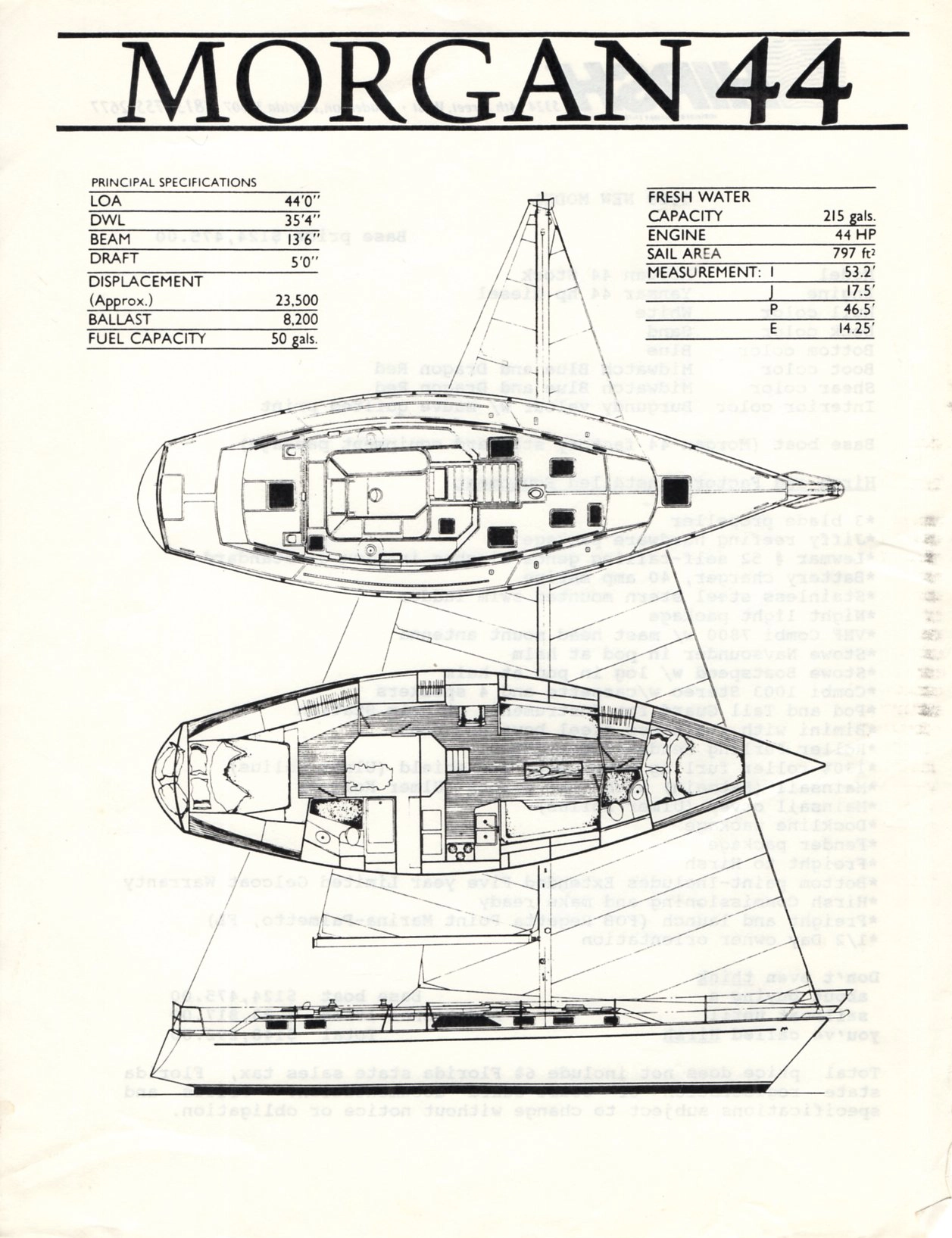

Morgan 44
Description
23500 lbs. Disp. 8200 lbs. Ballast 35'4" LWL 13'6" Beam 5' Draft
Construction Details
| Designer | Morgan Yachts |
|---|---|
| Length | 44.000 ft |
| LOA | 45.330 ft |
| LWL | 36.750 ft |
| Beam | 13.420 ft |
| Displacement | 22500 lb |
| Max Draft | 7.920 ft |
The standard boat dimensions
| i | 53.20 ft |
|---|---|
| j | 17.50 ft |
| p | 46.50 ft |
| e | 14.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 53.20 ft | 17.50 ft | 46.50 ft | 14.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46.5 ft - (14173 mm) |
| Foot | * 14.25 ft - (4343 mm) |
| Leech | * 47.89 ft - (14597 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 48.16 ft - (14679 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 341.22 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 44.8 ft - (13655 mm) |
| Foot | * 23.28 ft - (7096 mm) |
| Leech | * 38.73 ft - (11805 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 20.12 ft - (6133 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 450.73 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | * 23.01 ft - (7013 mm) |
| Leech | * 49.96 ft - (15228 mm) |
| Percentage LP | 125 % |
| Length Perpendicular | * 21.89 ft - (6672 mm) |
| Deck Angle | * -0.26 ° |
| Area | * 569.14 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 53.2 ft - (16215 mm) |
| Foot | * 28.35 ft - (8641 mm) |
| Leech | * 49.95 ft - (15225 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 26.25 ft - (8001 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 698.29 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 53.2 ft - (16215 mm) |
| Foot | * 28.88 ft - (8803 mm) |
| Leech | * 48.94 ft - (14917 mm) |
| Perc LP | * 165 % |
| Area | * 1152 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 30.8 ft - (9388 mm) |
| Foot | * 13.18 ft - (4017 mm) |
| Leech | * 25.13 ft - (7660 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.5 ft - (3200 mm) |
| Deck Angle | * 18.99 ° |
| Area | * 161.68 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
