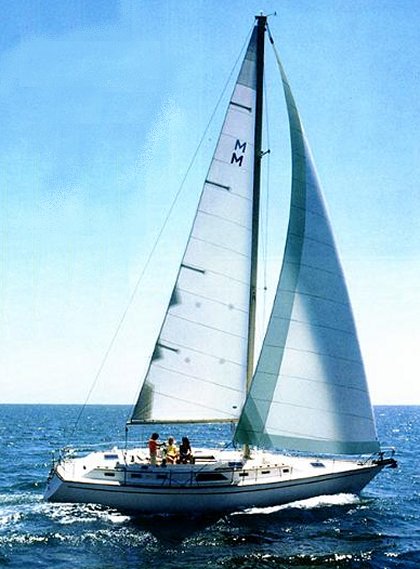

Morgan 43
Description
The Morgan 43 is a performance cruiser designed by Charley Morgan. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Charley Morgan |
|---|---|
| Length | 43.000 ft |
| LOA | 43.000 ft |
| LWL | 35.330 ft |
| Beam | 13.500 ft |
| Displacement | 23500 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 53.20 ft |
|---|---|
| j | 17.50 ft |
| p | 46.50 ft |
| e | 14.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 53.20 ft | 17.50 ft | 46.50 ft | 14.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46.5 ft - (14173 mm) |
| Foot | * 14.25 ft - (4343 mm) |
| Leech | * 47.89 ft - (14597 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 48.16 ft - (14679 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 341.22 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 52.25 ft - (15926 mm) |
| Foot | 21.5 ft - (6553 mm) |
| Leech | 47 ft - (14326 mm) |
| Percentage LP | * 110.46 % |
| Length Perpendicular | * 19.33 ft - (5892 mm) |
| Deck Angle | * 7.75 ° |
| Area | * 505.04 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52.25 ft - (15926 mm) |
| Foot | 25.75 ft - (7849 mm) |
| Leech | 48.25 ft - (14707 mm) |
| Percentage LP | * 135.14 % |
| Length Perpendicular | * 23.65 ft - (7209 mm) |
| Deck Angle | * 5.11 ° |
| Area | * 617.78 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 54 ft - (16459 mm) |
| Foot | 30 ft - (9144 mm) |
| Leech | 50.75 ft - (15469 mm) |
| Perc LP | * 165 % |
| Area | * 1215 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 30.8 ft - (9388 mm) |
| Foot | * 13.18 ft - (4017 mm) |
| Leech | * 25.13 ft - (7660 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.5 ft - (3200 mm) |
| Deck Angle | * 18.99 ° |
| Area | * 161.68 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
