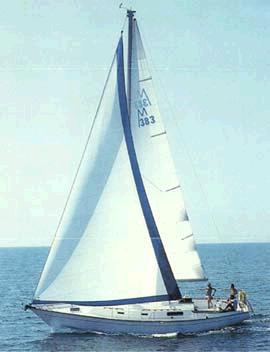

MORGAN 383
Description
The MORGAN 383 is a cruising yacht. Built for serious cruising, she offers reassuring stability in all conditions, with a deep keel providing excellent upwind performance and stability. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 38.000 ft |
| LOA | 37.670 ft |
| LWL | 28.000 ft |
| Beam | 11.000 ft |
| Displacement | 16000 lb |
| Max Draft | 8.330 ft |
| Min Draft | 3.750 ft |
The standard boat dimensions
| i | 50 ft |
|---|---|
| j | 16.25 ft |
| p | 42.50 ft |
| e | 13 ft |
| p2 | 34 ft |
| e2 | 9 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50 ft | 16.25 ft | 42.50 ft | 13 ft | 34 ft | 9 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 47.58 ft - (14502 mm) |
| Foot | 23.5 ft - (7163 mm) |
| Leech | 42.33 ft - (12902 mm) |
| Percentage LP | * 128.55 % |
| Length Perpendicular | * 20.89 ft - (6367 mm) |
| Deck Angle | * 9.26 ° |
| Area | * 496.97 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 43 ft - (13106 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 40.41 ft - (12317 mm) |
| Percentage LP | * 63.26 % |
| Length Perpendicular | * 10.28 ft - (3133 mm) |
| Deck Angle | * 2.87 ° |
| Area | * 220.98 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.95 ft - (15225 mm) |
| Foot | * 26.29 ft - (8013 mm) |
| Leech | * 46.94 ft - (14307 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 24.38 ft - (7431 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 608.89 ft² |
| Sail Type | STAYSAIL |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 11.75 ft - (3581 mm) |
| Leech | 32.75 ft - (9982 mm) |
| Percentage LP | * 118 % |
| Length Perpendicular | * 10.62 ft - (3237 mm) |
| Deck Angle | * 10.47 ° |
| Area | * 191.22 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 51 ft - (15545 mm) |
| Foot | 28 ft - (8534 mm) |
| Leech | 48 ft - (14630 mm) |
| Perc LP | * 165 |
| Area | * 1071 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 48.5 ft - (14783 mm) |
| Foot | 24.67 ft - (7519 mm) |
| Leech | 45.33 ft - (13817 mm) |
| Percentage LP | * 140.49 % |
| Length Perpendicular | * 22.83 ft - (6959 mm) |
| Deck Angle | * 4.24 ° |
| Area | * 553.71 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 48.5 ft - (14783 mm) |
| Foot | 23.75 ft - (7239 mm) |
| Leech | 45.25 ft - (13792 mm) |
| Percentage LP | * 135.38 % |
| Length Perpendicular | * 22 ft - (6706 mm) |
| Deck Angle | * 4.15 ° |
| Area | * 533.42 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 42.5 ft - (12954 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech-AftHdBd | * 43.74 ft - (13332 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 44.01 ft - (13414 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 285.31 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.06 ft - (12820 mm) |
| Foot | * 21.58 ft - (6578 mm) |
| Leech | * 36.43 ft - (11104 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 18.69 ft - (5697 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 393.03 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
