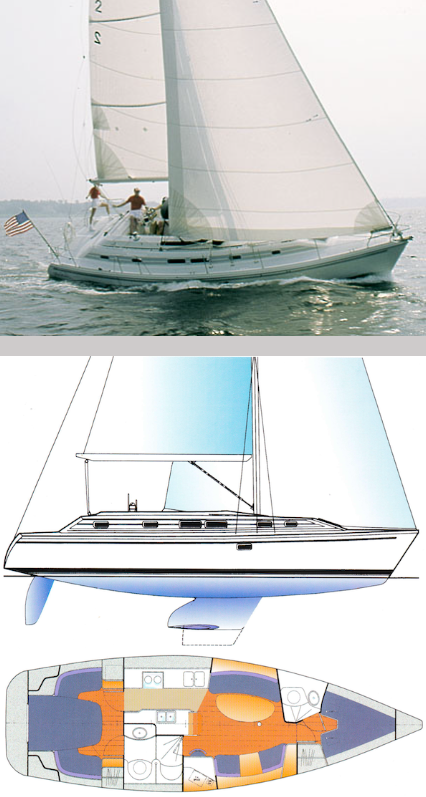

Morgan 38 New
Description
17500 lbs. Disp. 6800 lbs. Ballast 32'5" LWL 12'4" Beam 6'6" Draft std 5' Draft wing
The standard boat dimensions
| i | 50.50 ft |
|---|---|
| j | 14.67 ft |
| p | 42.17 ft |
| e | 15.67 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.50 ft | 14.67 ft | 42.17 ft | 15.67 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | * 42.17 |
| 10 | * 15.67 |
| 24.55 | * 44.19 |
| 88 | * 88 |
| 24.76 | * 44.47 |
| 4.5 | * 6 |
| 118.76 | * 339.38 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.07 ft - (12823 mm) |
| Foot | * 19.14 ft - (5834 mm) |
| Leech | * 37.09 ft - (11305 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.87 ft - (5142 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 354.88 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.96 ft - (15228 mm) |
| Foot | * 23.44 ft - (7145 mm) |
| Leech | * 47.3 ft - (14417 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 22 ft - (6706 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 549.57 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.96 ft - (15228 mm) |
| Foot | * 19.41 ft - (5916 mm) |
| Leech | * 47.3 ft - (14417 mm) |
| Percentage LP | 125 % |
| Length Perpendicular | * 18.34 ft - (5590 mm) |
| Deck Angle | * 2.93 ° |
| Area | * 458.1 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 49.96 ft - (15228 mm) |
| Foot | * 24.21 ft - (7379 mm) |
| Leech | * 45.96 ft - (14009 mm) |
| Perc LP | * 165 % |
| Area | * 907 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 28.92 ft - (8815 mm) |
| Foot | * 10.77 ft - (3283 mm) |
| Leech | * 24.36 ft - (7425 mm) |
| Perc LP | * 59.99 % |
| Length Perp | * 8.8 ft - (2682 mm) |
| Deck Angle | * 18.99 ° |
| Area | * 127.28 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
