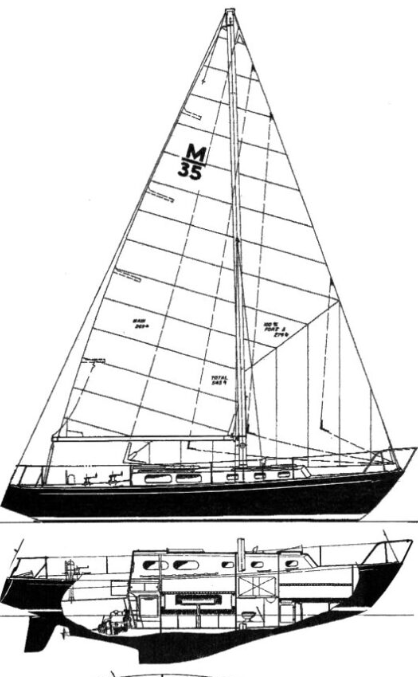

Morgan 35
Description
The MORGAN 35 is a cruising yacht designed by Charley Morgan. Built for serious cruising, she offers reassuring stability in all conditions, with a deep keel providing excellent upwind performance and stability. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Charley Morgan |
|---|---|
| Length | 35.000 ft |
| LOA | 35.000 ft |
| LWL | 27.580 ft |
| Beam | 10.750 ft |
| Displacement | 11900 lb |
| Max Draft | 6.750 ft |
| Min Draft | 4.250 ft |
The standard boat dimensions
| i | 40.75 ft |
|---|---|
| j | 13.67 ft |
| p | 35.83 ft |
| e | 15 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.75 ft | 13.67 ft | 35.83 ft | 15 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 35.83 ft - (10921 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | * 38.3 ft - (11674 mm) |
| Tack Angle | * 88.91 ° |
| Diagonal | 38.58 ft - (11759 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 276.64 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 37.25 ft - (11354 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 32.25 ft - (9830 mm) |
| Percentage LP | * 80.47 % |
| Length Perpendicular | * 11 ft - (3353 mm) |
| Deck Angle | * 13.68 ° |
| Area | * 204.82 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 39.5 ft - (12040 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 36.25 ft - (11049 mm) |
| Percentage LP | * 100.66 % |
| Length Perpendicular | * 13.76 ft - (4194 mm) |
| Deck Angle | * 4.89 ° |
| Area | * 271.82 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 40 ft - (12192 mm) |
| Foot | 23.5 ft - (7163 mm) |
| Leech | 38.25 ft - (11659 mm) |
| Percentage LP | * 159.91 % |
| Length Perpendicular | * 21.86 ft - (6663 mm) |
| Deck Angle | * 2.96 ° |
| Area | * 437.28 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37.25 ft - (11354 mm) |
| Foot | 18.33 ft - (5587 mm) |
| Leech | 34.083 ft - (10388 mm) |
| Percentage LP | * 122.24 % |
| Length Perpendicular | * 16.71 ft - (5093 mm) |
| Deck Angle | * 5.75 ° |
| Area | * 311.16 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 40.75 ft - (12421 mm) |
| Foot | 21.5 ft - (6553 mm) |
| Leech | 39.75 ft - (12116 mm) |
| Percentage LP | * 149.52 % |
| Length Perpendicular | * 20.44 ft - (6230 mm) |
| Deck Angle | * -0.5 ° |
| Area | * 416.52 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 40.83 ft - (12445 mm) |
| MidGirth | * 24.61 ft - (7501 mm) |
| Foot | * 24.61 ft - (7501 mm) |
| Perc LP | * 180 % |
| Area | * 854 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 16.67 ft - (5081 mm) |
| Perc LP | * 45.35 % |
| Length Perp | * 6.2 ft - (1890 mm) |
| Deck Angle | * 27.93 ° |
| Area | * 68.18 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 15 ft - (4572 mm) |
| Foot | 8.75 ft - (2667 mm) |
| Leech | 19.75 ft - (6020 mm) |
| Length Perp | * 12.5 ft - (3810 mm) |
| Tack Angle | * 1.33 ° |
| Area | * 62 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
