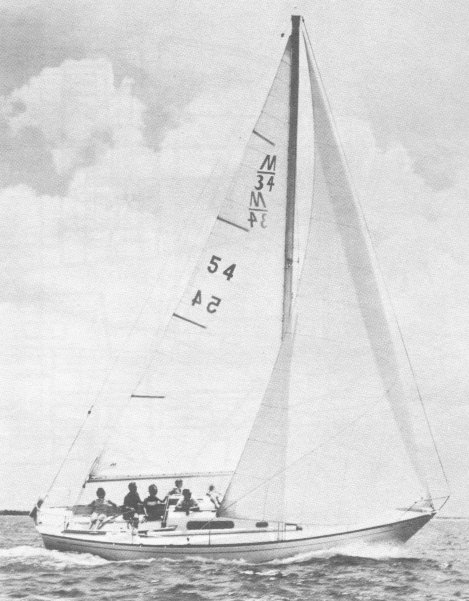

Morgan 34
Description
12500 lbs. Disp. 5200 lbs. Ballast 24'9" LWL 10' Beam 3'3" Draft cb up 7'11" Draft cb down
Construction Details
| Designer | Charley Morgan |
|---|---|
| Length | 34.000 ft |
| LOA | 34.000 ft |
| LWL | 24.750 ft |
| Beam | 10.000 ft |
| Displacement | 12500 lb |
| Max Draft | 7.920 ft |
| Min Draft | 3.250 ft |
The standard boat dimensions
| i | 40.75 ft |
|---|---|
| j | 13.25 ft |
| p | 35.08 ft |
| e | 15.67 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.75 ft | 13.25 ft | 35.08 ft | 15.67 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 35.083 ft - (10693 mm) |
| Foot | 15.67 ft - (4776 mm) |
| Leech | * 38.26 ft - (11662 mm) |
| Tack Angle | * 90.47 ° |
| Diagonal | 38.54 ft - (11747 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 282.82 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 37.25 ft - (11354 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 32.17 ft - (9805 mm) |
| Percentage LP | * 82.64 % |
| Length Perpendicular | * 10.95 ft - (3338 mm) |
| Deck Angle | * 14.58 ° |
| Area | * 204 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.75 ft - (12116 mm) |
| Foot | 21.25 ft - (6477 mm) |
| Leech | 37.75 ft - (11506 mm) |
| Percentage LP | * 149.66 % |
| Length Perpendicular | * 19.83 ft - (6044 mm) |
| Deck Angle | * 3.03 ° |
| Area | * 394.18 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37.25 ft - (11354 mm) |
| Foot | 18.25 ft - (5563 mm) |
| Leech | 34.083 ft - (10388 mm) |
| Percentage LP | * 125.58 % |
| Length Perpendicular | * 16.64 ft - (5072 mm) |
| Deck Angle | * 6.26 ° |
| Area | * 309.85 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 40.75 ft - (12421 mm) |
| Foot | 20.92 ft - (6376 mm) |
| Leech | 39.58 ft - (12064 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 19.88 ft - (6059 mm) |
| Deck Angle | * 0.16 ° |
| Area | * 404.99 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 41.5 ft - (12649 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 38 ft - (11582 mm) |
| Perc LP | * 165 % |
| Area | * 685 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 40.71 ft - (12408 mm) |
| MidGirth | * 23.85 ft - (7269 mm) |
| Foot | * 23.85 ft - (7269 mm) |
| Perc LP | * 180 % |
| Area | * 825 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 21 ft - (6401 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | 15.75 ft - (4801 mm) |
| Perc LP | * 42.94 % |
| Length Perp | * 5.69 ft - (1734 mm) |
| Deck Angle | * 29.96 ° |
| Area | * 59.75 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 15.17 ft - (4624 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 20 ft - (6096 mm) |
| Length Perp | * 12.64 ft - (3853 mm) |
| Tack Angle | * 1.49 ° |
| Area | * 65 ft² |
