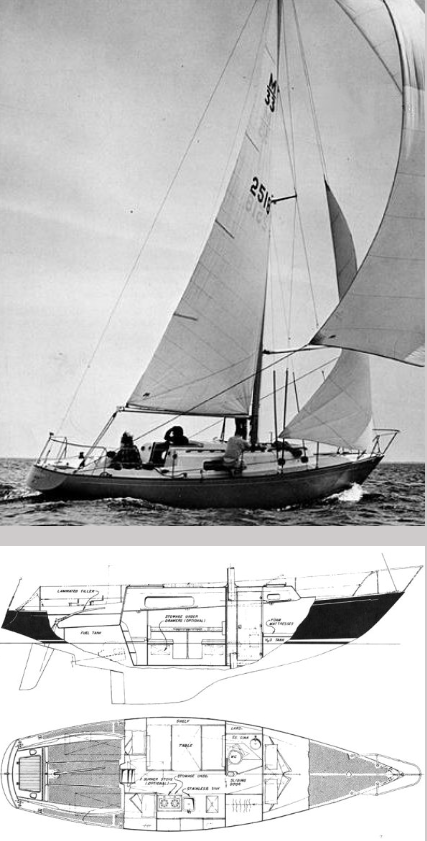

Morgan 33
Description
The MORGAN 33 is a mid-sized cruiser designed by Charley Morgan. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Charley Morgan |
|---|---|
| Length | 33.000 ft |
| LOA | 33.300 ft |
| LWL | 24.260 ft |
| Beam | 9.330 ft |
| Displacement | 11000 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 39.50 ft |
|---|---|
| j | 13 ft |
| p | 34.25 ft |
| e | 14.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39.50 ft | 13 ft | 34.25 ft | 14.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 34.25 ft - (10439 mm) |
| Foot | 14.25 ft - (4343 mm) |
| Leech | * 36.47 ft - (11116 mm) |
| Tack Angle | * 88.5 ° |
| Diagonal | 36.75 ft - (11201 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 251.53 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 35.17 ft - (10720 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 29.25 ft - (8915 mm) |
| Percentage LP | * 79.85 % |
| Length Perpendicular | * 10.38 ft - (3164 mm) |
| Deck Angle | * 18.79 ° |
| Area | * 182.56 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.58 ft - (12064 mm) |
| Foot | 20.75 ft - (6325 mm) |
| Leech | 38 ft - (11582 mm) |
| Percentage LP | * 150.31 % |
| Length Perpendicular | * 19.54 ft - (5956 mm) |
| Deck Angle | * 1.46 ° |
| Area | * 386.66 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 39.51 ft - (12043 mm) |
| Foot | * 21.45 ft - (6538 mm) |
| Leech | * 36.35 ft - (11079 mm) |
| Perc LP | * 165 % |
| Area | * 636 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 39.51 ft - (12043 mm) |
| MidGirth | * 23.4 ft - (7132 mm) |
| Foot | * 23.4 ft - (7132 mm) |
| Perc LP | * 180 % |
| Area | * 786 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 22.75 ft - (6934 mm) |
| Foot | 9.33 ft - (2844 mm) |
| Leech | 17.167 ft - (5233 mm) |
| Perc LP | * 49.08 % |
| Length Perp | * 6.38 ft - (1945 mm) |
| Deck Angle | * 28.67 ° |
| Area | * 72.53 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
