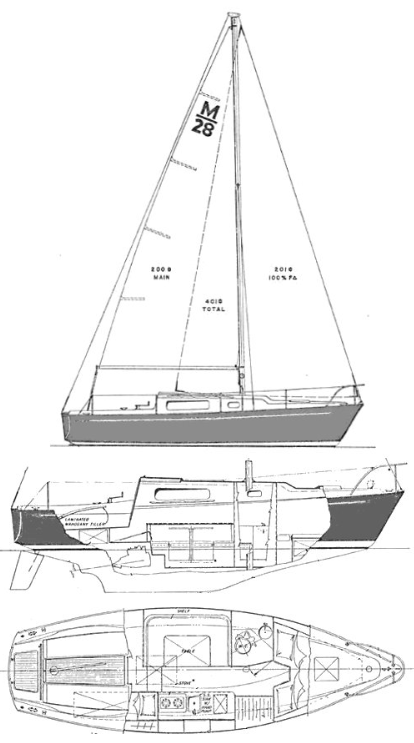

Morgan 28
Description
7600 lbs. Disp. 3000 lbs. Ballast 23'9" LWL 9' Beam 3' Draft board up 6'8" Draft board down
Construction Details
| Designer | Charley Morgan |
|---|---|
| Length | 28.000 ft |
| LOA | 27.830 ft |
| LWL | 23.750 ft |
| Beam | 9.000 ft |
| Displacement | 7600 lb |
| Max Draft | 6.670 ft |
| Min Draft | 3.000 ft |
The standard boat dimensions
| i | 36.67 ft |
|---|---|
| j | 11 ft |
| p | 31.50 ft |
| e | 12.67 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 36.67 ft | 11 ft | 31.50 ft | 12.67 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 31.5 ft - (9601 mm) |
| Foot | 12.67 ft - (3862 mm) |
| Leech | * 33.48 ft - (10205 mm) |
| Tack Angle | * 88.63 ° |
| Diagonal | 33.67 ft - (10263 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 204.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 34 ft - (10363 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 30 ft - (9144 mm) |
| Percentage LP | * 107.82 % |
| Length Perpendicular | * 11.86 ft - (3615 mm) |
| Deck Angle | * 11.82 ° |
| Area | * 201.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36.5 ft - (11125 mm) |
| Foot | 19 ft - (5791 mm) |
| Leech | 31 ft - (9449 mm) |
| Percentage LP | * 146.73 % |
| Length Perpendicular | * 16.14 ft - (4919 mm) |
| Deck Angle | * 15.17 ° |
| Area | * 294.49 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36.5 ft - (11125 mm) |
| Foot | 17.42 ft - (5310 mm) |
| Leech | 34.75 ft - (10592 mm) |
| Percentage LP | * 149.09 % |
| Length Perpendicular | * 16.4 ft - (4999 mm) |
| Deck Angle | * 2.98 ° |
| Area | * 299.35 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 36.37 ft - (11086 mm) |
| Foot | * 18.15 ft - (5532 mm) |
| Leech | * 33.46 ft - (10199 mm) |
| Perc LP | * 165 % |
| Area | * 495 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 36.37 ft - (11086 mm) |
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 % |
| Area | * 612 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
