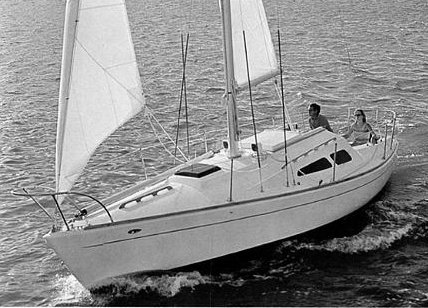

Morgan 27
Description
The MORGAN 27 is a compact cruiser designed by Charley Morgan. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Charley Morgan |
|---|---|
| Length | 27.000 ft |
| LOA | 27.500 ft |
| LWL | 25.000 ft |
| Beam | 9.830 ft |
| Displacement | 7000 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 37 ft |
|---|---|
| j | 11.75 ft |
| p | 31 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37 ft | 11.75 ft | 31 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 31 ft - (9449 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | * 32.55 ft - (9921 mm) |
| Tack Angle | * 91.07 ° |
| Diagonal | 32.75 ft - (9982 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 160.15 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 34 ft - (10363 mm) |
| Foot | 11.08 ft - (3377 mm) |
| Leech | 30.17 ft - (9196 mm) |
| Percentage LP | * 82.21 % |
| Length Perpendicular | * 9.66 ft - (2944 mm) |
| Deck Angle | * 11.67 ° |
| Area | * 164.29 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37.17 ft - (11329 mm) |
| Foot | 18.58 ft - (5663 mm) |
| Leech | 35.67 ft - (10872 mm) |
| Percentage LP | * 149.36 % |
| Length Perpendicular | * 17.55 ft - (5349 mm) |
| Deck Angle | * 1.59 ° |
| Area | * 326.08 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37.167 ft - (11329 mm) |
| Foot | 14.92 ft - (4548 mm) |
| Leech | 34.67 ft - (10567 mm) |
| Percentage LP | * 118.38 % |
| Length Perpendicular | * 13.91 ft - (4240 mm) |
| Deck Angle | * 3.63 ° |
| Area | * 258.41 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 37.167 ft - (11329 mm) |
| Foot | 19.92 ft - (6072 mm) |
| Leech | 32.75 ft - (9982 mm) |
| Perc LP | * 149.02 % |
| Length Perp | * 17.51 ft - (5337 mm) |
| Deck Angle | * 10.84 ° |
| Area | * 325.45 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 40 ft - (12192 mm) |
| Foot | 21.25 ft - (6477 mm) |
| Leech | 38 ft - (11582 mm) |
| Perc LP | * 165 % |
| Area | * 638 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 36.88 ft - (11241 mm) |
| Foot | * 19.39 ft - (5910 mm) |
| Leech | * 33.93 ft - (10342 mm) |
| Perc LP | * 165 % |
| Area | * 536 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 36.88 ft - (11241 mm) |
| MidGirth | * 21.15 ft - (6447 mm) |
| Foot | * 21.15 ft - (6447 mm) |
| Perc LP | * 180 % |
| Area | * 663 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 20 ft - (6096 mm) |
| Foot | 8.083 ft - (2464 mm) |
| Leech | 14.5 ft - (4420 mm) |
| Perc LP | * 42.3 % |
| Length Perp | * 4.97 ft - (1515 mm) |
| Deck Angle | * 34.47 ° |
| Area | * 49.67 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | 11.39 ft - (3472 mm) |
| Foot | 6.83 ft - (2082 mm) |
| Leech | 17.083 ft - (5207 mm) |
| Length Perp | * 9.49 ft - (2893 mm) |
| Tack Angle | * 16.52 ° |
| Area | * 26 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
