Fuji 32 Ketch
Description
The Fuji 32 is a robust 31'5" (9.6 m) monohull sailboat designed by the legendary American naval architect John Gale Alden in the mid-1970s, built to high standards by Fuji Yacht Builders Ltd. in Japan starting in 1976, and sharing molds with the Mariner 31/32 for economical production. Featuring elegant classic lines with a clipper bow, modified full keel, and cutaway forefoot for balanced stability and windward performance, it's rigged as a ketch (or optionally cutter) with a heavy displacement of 12,800 lb. (including 4,500 lb. .ballast), making it stiff, seaworthy, and ideal for blue water cruising despite modest sail area (624 sq ft) and underpowered engine (typically a 32 hp Yanmar diesel). With a beam of 10'6" (3.2 m), draft of 5'3" (1.6 m), and a displacement/length ratio of 386 classifying it as a heavy cruiser, the Fuji 32 offers a spacious teak-interior layout for 4–6 with a V-berth forward, saloon, galley, and nav station, though its small 40-gal fuel and 60-gal water tanks limit long-range autonomy without mods. Production ended in the early 1980s after about 100 hulls, but the design's reputation for durability endures, with active owners via fujiyachts.net sharing specs, manuals, and photos.
Construction Details
| Designer | John G. Alden |
|---|---|
| Builder | Fuji Yacht Builders Ltd. |
| Length | 32.000 ft |
| LOA | 31.500 ft |
| LWL | 24.750 ft |
| Beam | 9.830 ft |
| Displacement | 13115 lb |
| Ballast | 4635 lb |
| Max Draft | 3.670 ft |
| Year Built | 1976 |
The standard boat dimensions
| i | 34.25 ft |
|---|---|
| j | 12.75 ft |
| p | 29.75 ft |
| e | 11.92 ft |
| p2 | 18 ft |
| e2 | 9.58 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 34.25 ft | 12.75 ft | 29.75 ft | 11.92 ft | 18 ft | 9.58 ft | - | - |

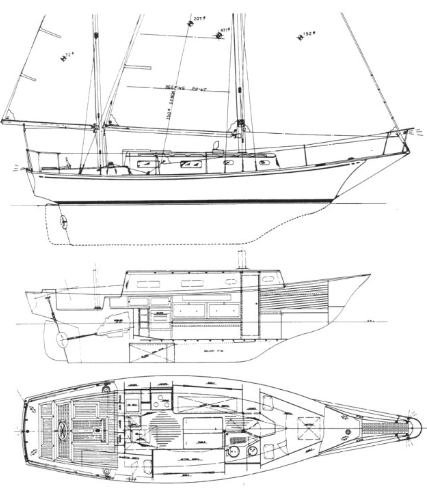

Blueprints2>
Sails
Fuji 32 Ketch - MAINSAIL
| Luff | * 29.75 ft - (9068 mm) |
|---|---|
| Foot | * 11.92 ft - (3633 mm) |
| Leech | * 31.52 ft - (9607 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 31.66 ft - (9650 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 182.702 ft² |
| Edit in Calculator | |
Fuji 32 Ketch - JIBSAIL
| Luff | * 29.75 ft - (9068 mm) |
|---|---|
| Foot | * 11.92 ft - (3633 mm) |
| Leech | * 31.52 ft - (9607 mm) |
| Percentage LP | * 88 % |
| Length Perpendicular | * 31.66 ft - (9650 mm) |
| Deck Angle | * 4.5 ° |
| Area | * 214.36 ft² |
| Edit in Calculator | |
Fuji 32 Ketch - GENOA
| Luff | * 29.75 ft - (9068 mm) |
|---|---|
| Foot | * 11.92 ft - (3633 mm) |
| Leech | * 31.52 ft - (9607 mm) |
| Percentage LP | * 88 % |
| Length Perpendicular | * 31.66 ft - (9650 mm) |
| Deck Angle | * 4.5 ° |
| Area | * 332.13 ft² |
| Edit in Calculator | |
Fuji 32 Ketch - ASYMMETRICAL
| Luff | * 29.75 ft - (9068 mm) |
|---|---|
| Foot | * 11.92 ft - (3633 mm) |
| Leech | * 31.52 ft - (9607 mm) |
| Perc LP | * 88 % |
| Area | * 547.88 ft² |
| Edit in Calculator | |
Fuji 32 Ketch - MIZZEN
| Luff | * 29.75 ft - (9068 mm) |
|---|---|
| Foot | * 11.92 ft - (3633 mm) |
| Leech-AftHdBd | * 31.52 ft - (9607 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 31.66 ft - (9650 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area (no Roach) | * 88.847 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
