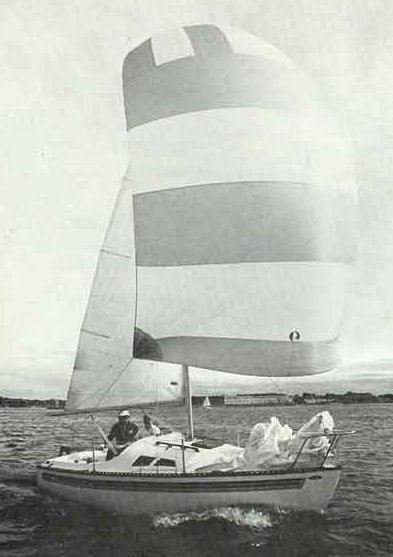

Mirage 5.5
Description
Introduced in 1979.
Construction Details
| Designer | K. Fickett |
|---|---|
| Length | 20.000 ft |
| LOA | 20.000 ft |
| LWL | 17.330 ft |
| Beam | 8.000 ft |
| Displacement | 1200 lb |
| Max Draft | 5.330 ft |
| Min Draft | 1.330 ft |
The standard boat dimensions
| i | 26.25 ft |
|---|---|
| j | 8.25 ft |
| p | 22.50 ft |
| e | 7.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.25 ft | 8.25 ft | 22.50 ft | 7.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 22.5 ft - (6858 mm) |
| Foot | * 7.25 ft - (2210 mm) |
| Leech | * 23.24 ft - (7084 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 23.4 ft - (7132 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 84.35 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 22.01 ft - (6709 mm) |
| Foot | * 10.9 ft - (3322 mm) |
| Leech | * 19.16 ft - (5840 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 9.49 ft - (2893 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 104.42 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 9.5 ft - (2896 mm) |
| Leech | 20.167 ft - (6147 mm) |
| Percentage LP | * 100.61 % |
| Length Perpendicular | * 8.3 ft - (2530 mm) |
| Deck Angle | * 11.65 ° |
| Area | * 95.46 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 20 ft - (6096 mm) |
| Foot | 8 ft - (2438 mm) |
| Leech | 17.5 ft - (5334 mm) |
| Percentage LP | * 84.36 % |
| Length Perpendicular | * 6.96 ft - (2121 mm) |
| Deck Angle | * 12.09 ° |
| Area | * 69.6 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 9.83 ft - (2996 mm) |
| Leech | 23.167 ft - (7061 mm) |
| Percentage LP | * 110.42 % |
| Length Perpendicular | * 9.11 ft - (2777 mm) |
| Deck Angle | * 4.65 ° |
| Area | * 113.85 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.25 ft - (8001 mm) |
| Foot | 13.67 ft - (4167 mm) |
| Leech | 24.83 ft - (7568 mm) |
| Percentage LP | * 154.55 % |
| Length Perpendicular | * 12.75 ft - (3886 mm) |
| Deck Angle | * 3.74 ° |
| Area | * 167.29 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 26.14 ft - (7967 mm) |
| Foot | * 13.3 ft - (4054 mm) |
| Leech | * 24.62 ft - (7504 mm) |
| Percentage LP | * 150.06 % |
| Length Perpendicular | * 12.38 ft - (3773 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 161.81 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 14.85 ft - (4526 mm) |
| Leech | 24.5 ft - (7468 mm) |
| Perc LP | * 165 % |
| Area | * 301 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 26.14 ft - (7967 mm) |
| MidGirth | * 14.85 ft - (4526 mm) |
| Foot | * 14.85 ft - (4526 mm) |
| Perc LP | * 180 % |
| Area | * 330 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 15.13 ft - (4612 mm) |
| Foot | * 6.15 ft - (1875 mm) |
| Leech | * 12.5 ft - (3810 mm) |
| Perc LP | * 60 % |
| Length Perp | * 4.95 ft - (1509 mm) |
| Deck Angle | * 18.97 ° |
| Area | * 37.44 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
