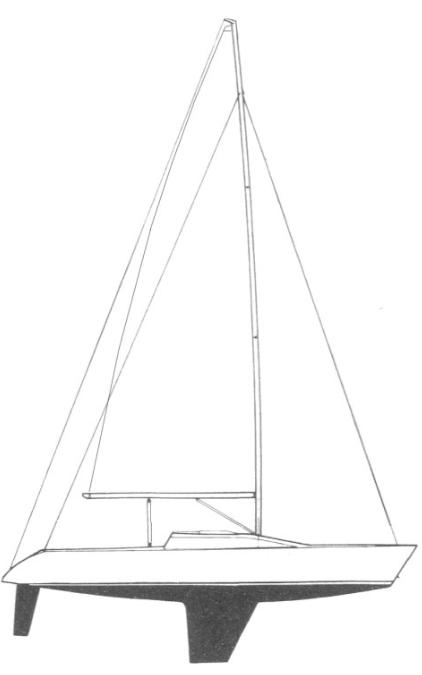

Mirage 338
Description
Introduced in 1983.
Construction Details
| Designer | Kelly |
|---|---|
| Length | 34.000 ft |
| LOA | 33.500 ft |
| LWL | 26.750 ft |
| Beam | 11.670 ft |
| Displacement | 9300 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 40.25 ft |
|---|---|
| j | 12 ft |
| p | 40 ft |
| e | 13.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.25 ft | 12 ft | 40 ft | 13.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40 ft - (12192 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Leech | * 41.5 ft - (12649 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 41.77 ft - (12731 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 278.6 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.6 ft - (10241 mm) |
| Foot | * 15.72 ft - (4791 mm) |
| Leech | * 29.5 ft - (8992 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.8 ft - (4206 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 231.85 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.9 ft - (12162 mm) |
| Foot | * 19.23 ft - (5861 mm) |
| Leech | * 37.71 ft - (11494 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 359.12 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 39.9 ft - (12162 mm) |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 % |
| Area | * 733 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
