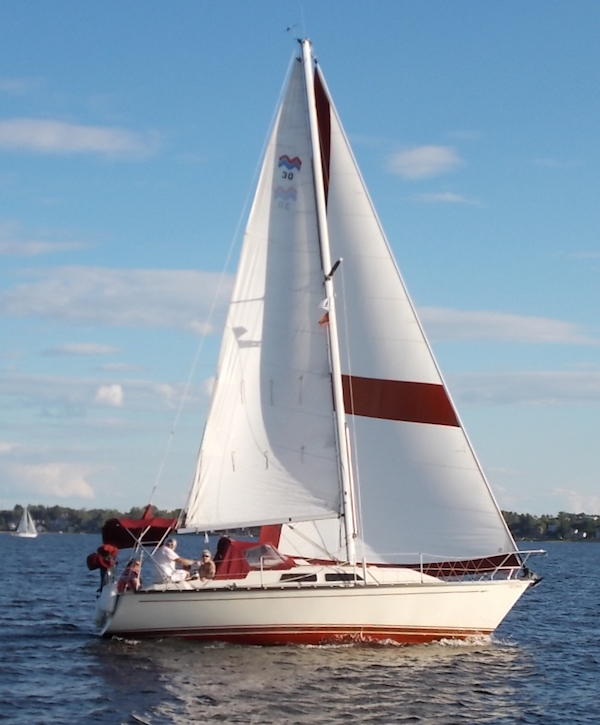

Mirage 30SX
Description
The Mirage 30SX is a mid-sized cruiser designed by Bruce Kirby. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Bruce Kirby |
|---|---|
| Length | 30.000 ft |
| LOA | 30.000 ft |
| LWL | 23.750 ft |
| Beam | 10.500 ft |
| Displacement | 8000 lb |
| Max Draft | 4.830 ft |
The standard boat dimensions
| i | 38.25 ft |
|---|---|
| j | 11.75 ft |
| p | 38.75 ft |
| e | 12.88 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 38.25 ft | 11.75 ft | 38.75 ft | 12.88 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38.75 ft - (11811 mm) |
| Foot | * 12.88 ft - (3926 mm) |
| Leech-AftHdBd | * 40.14 ft - (12235 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 40.41 ft - (12317 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 257.87 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.01 ft - (9757 mm) |
| Foot | * 15.46 ft - (4712 mm) |
| Leech | * 27.97 ft - (8525 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 13.51 ft - (4118 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 216.21 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.01 ft - (11585 mm) |
| Foot | * 18.88 ft - (5755 mm) |
| Leech | * 35.86 ft - (10930 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 17.62 ft - (5371 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 334.89 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 38.01 |
| MidGirth | * 21.15 ft - (6447 mm) |
| Foot | * 21.15 ft - (6447 mm) |
| Perc LP | * 180 |
| Area | * 683 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
