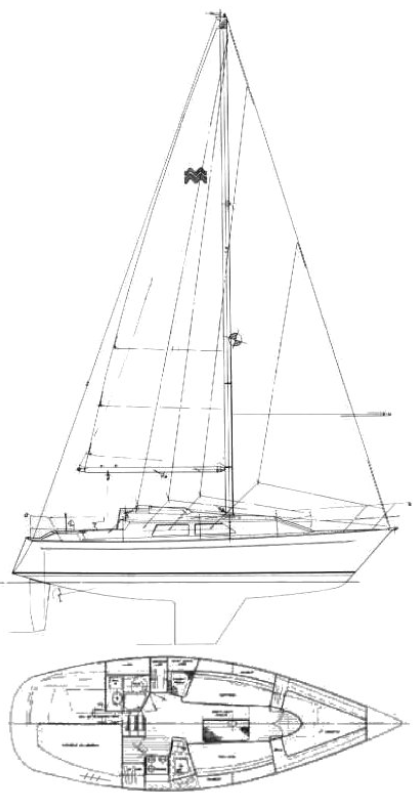

Mirage 30 / 32
Description
The MIRAGE 30 / 32 is a sailboat designed by Bob Perry. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 40.03 ft |
|---|---|
| j | 12.24 ft |
| p | 34.25 ft |
| e | 10.99 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.03 ft | 12.24 ft | 34.25 ft | 10.99 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34.25 ft - (10439 mm) |
| Foot | * 10.99 ft - (3350 mm) |
| Leech | * 35.36 ft - (10778 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 35.6 ft - (10851 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 194.58 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.49 ft - (10208 mm) |
| Foot | * 16.1 ft - (4907 mm) |
| Leech | * 29.29 ft - (8928 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 14.08 ft - (4292 mm) |
| Deck Angle | * 12 ° |
| Area | * 235.78 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.77 ft - (12122 mm) |
| Foot | * 19.67 ft - (5995 mm) |
| Leech | * 37.51 ft - (11433 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.36 ft - (5596 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 365.07 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 39.77 ft - (12122 mm) |
| MidGirth | * 22.03 ft - (6715 mm) |
| Foot | * 22.03 ft - (6715 mm) |
| Perc LP | * 180 % |
| Area | * 745 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
