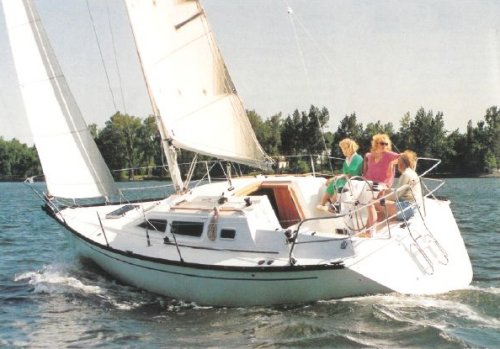

Mirage 29
Description
L.W.L.: 24' 3" (7.39 m) Beam: 10' 6" (3.20 m) Draft: 4' 8" (1.42 m) Displacement: 7000 lbs. (3175 kg.) Ballast: 2700 lbs. (1225 kg.)
Construction Details
| Designer | Philippe Harle |
|---|---|
| Length | 29.000 ft |
| LOA | 29.000 ft |
| LWL | 24.250 ft |
| Beam | 10.500 ft |
| Displacement | 6800 lb |
| Max Draft | 4.830 ft |
The standard boat dimensions
| i | 37.42 ft |
|---|---|
| j | 11.83 ft |
| p | 32.50 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37.42 ft | 11.83 ft | 32.50 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32.5 ft - (9906 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech | * 33.34 ft - (10162 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 33.54 ft - (10223 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 159.58 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.4 ft - (9571 mm) |
| Foot | * 15.63 ft - (4764 mm) |
| Leech | * 27.32 ft - (8327 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 13.6 ft - (4145 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 213.5 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.28 ft - (11363 mm) |
| Foot | * 19.07 ft - (5813 mm) |
| Leech | * 35.1 ft - (10698 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 17.74 ft - (5407 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 330.7 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36.5 ft - (11125 mm) |
| Foot | 17.167 ft - (5233 mm) |
| Leech | 34.25 ft - (10439 mm) |
| Percentage LP | * 135.25 % |
| Length Perpendicular | * 16 ft - (4877 mm) |
| Deck Angle | * 3.69 ° |
| Area | * 292.03 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36.5 ft - (11125 mm) |
| Foot | 18.25 ft - (5563 mm) |
| Leech | 34.5 ft - (10516 mm) |
| Percentage LP | * 144.13 % |
| Length Perpendicular | * 17.05 ft - (5197 mm) |
| Deck Angle | * 3.35 ° |
| Area | * 311.17 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 37.28 ft - (11363 mm) |
| MidGirth | * 21.29 ft - (6489 mm) |
| Foot | * 21.29 ft - (6489 mm) |
| Perc LP | * 180 % |
| Area | * 675 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
