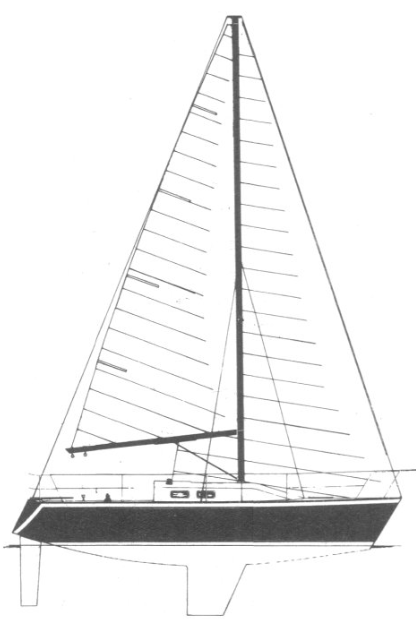

Mirage 28 Tall Rig
Description
Introduced in 1980.
The standard boat dimensions
| i | 38.70 ft |
|---|---|
| j | 11.25 ft |
| p | 33 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 38.70 ft | 11.25 ft | 33 ft | 10 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33 ft - (10058 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech | * 33.95 ft - (10348 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 34.15 ft - (10409 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 170.3 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.24 ft - (9827 mm) |
| Foot | * 14.68 ft - (4474 mm) |
| Leech | * 28.42 ft - (8662 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 12.94 ft - (3944 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 208.56 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.29 ft - (11671 mm) |
| Foot | * 17.99 ft - (5483 mm) |
| Leech | * 36.24 ft - (11046 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 16.88 ft - (5145 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 323.17 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 38.29 ft - (11671 mm) |
| MidGirth | * 20.25 ft - (6172 mm) |
| Foot | * 20.25 ft - (6172 mm) |
| Perc LP | * 180 % |
| Area | * 659 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
