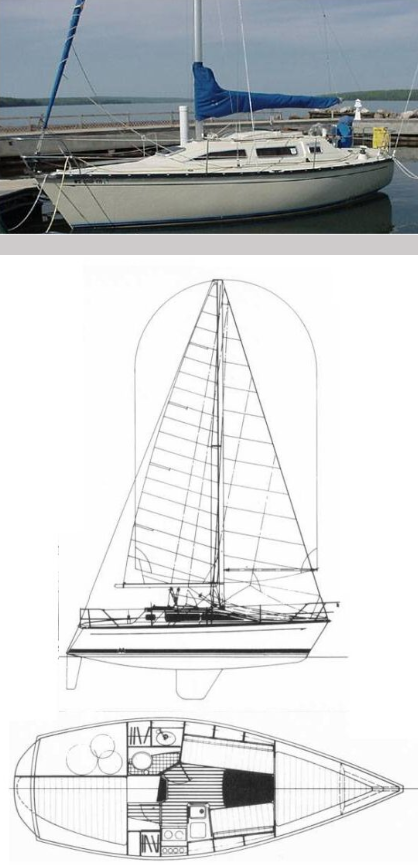

Mirage 275 Tall Rig
Description
Introduced in 1987.
The standard boat dimensions
| i | 39.50 ft |
|---|---|
| j | 10.50 ft |
| p | 34 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39.50 ft | 10.50 ft | 34 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34 ft - (10363 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech | * 35.13 ft - (10708 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 35.37 ft - (10781 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 193.34 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.7 ft - (9967 mm) |
| Foot | * 13.54 ft - (4127 mm) |
| Leech | * 29.2 ft - (8900 mm) |
| Percentage LP | * 115.05 % |
| Length Perpendicular | * 12.08 ft - (3682 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 197.51 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.83 ft - (11835 mm) |
| Foot | * 16.65 ft - (5075 mm) |
| Leech | * 36.95 ft - (11262 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.75 ft - (4801 mm) |
| Deck Angle | * 4.05 ° |
| Area | * 305.76 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 38.83 ft - (11835 mm) |
| MidGirth | * 18.9 ft - (5761 mm) |
| Foot | * 18.9 ft - (5761 mm) |
| Perc LP | * 180 % |
| Area | * 624 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
