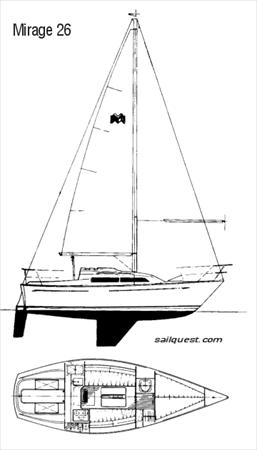

Mirage 26 Std Rig
Description
L.W.L.: 21' 8" (6.60 m) Beam: 9' 3" (2.82 m) Draft: 4' 6" (1.38 m) Displacement: 4770 lbs. (2166 kg.) Introduced in 1976. Ballast: 2050 lbs. (931 kg.)
The standard boat dimensions
| i | 33.60 ft |
|---|---|
| j | 11 ft |
| p | 28.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 33.60 ft | 11 ft | 28.50 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 28.5 ft - (8687 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech | * 29.41 ft - (8964 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 29.59 ft - (9019 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 132.31 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.75 ft - (8763 mm) |
| Foot | 13.83 ft - (4215 mm) |
| Leech | 25.25 ft - (7696 mm) |
| Percentage LP | * 110.45 % |
| Length Perpendicular | * 12.15 ft - (3703 mm) |
| Deck Angle | * 10.44 ° |
| Area | * 174.6 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 33.67 ft - (10263 mm) |
| Foot | 17.67 ft - (5386 mm) |
| Leech | 32 ft - (9754 mm) |
| Percentage LP | * 150.18 % |
| Length Perpendicular | * 16.52 ft - (5035 mm) |
| Deck Angle | * 2.64 ° |
| Area | * 278.15 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 34 ft - (10363 mm) |
| Foot | 19 ft - (5791 mm) |
| Leech | 31 ft - (9449 mm) |
| Perc LP | * 165 % |
| Area | * 484 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 33.59 ft - (10238 mm) |
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 % |
| Area | * 565 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 17 ft - (5182 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 13 ft - (3962 mm) |
| Perc LP | * 61.73 % |
| Length Perp | * 6.79 ft - (2070 mm) |
| Deck Angle | * 22.93 ° |
| Area | * 57.68 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
