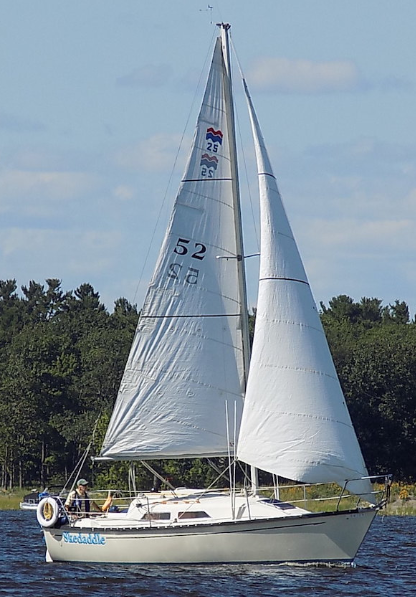

Mirage 25
Description
L.O.A.: 25' 2" (7.70 m) L.W.L.: 21' 0" (6.40 m) Beam: 9' 6" (2.90 m) Draft: 4' 4" (1.30 m) Displacement: 4400 lbs. (2000 kg.) Ballast: 1600 lbs. (650 kg.) Introduced in 1982
Construction Details
| Designer | Bob Perry |
|---|---|
| Length | 25.170 ft |
| LOA | 32.000 ft |
| LWL | 26.000 ft |
| Beam | 10.500 ft |
| Displacement | 8000 lb |
| Max Draft | 4.830 ft |
The standard boat dimensions
| i | 32 ft |
|---|---|
| j | 9.25 ft |
| p | 27 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 32 ft | 9.25 ft | 27 ft | 10 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27 ft - (8230 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech | * 28.25 ft - (8611 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 28.46 ft - (8675 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 139.32 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.65 ft - (8123 mm) |
| Foot | * 12.06 ft - (3676 mm) |
| Leech | * 23.52 ft - (7169 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 10.64 ft - (3243 mm) |
| Deck Angle | * 11.95 ° |
| Area | * 141.8 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 11.25 ft - (3429 mm) |
| Leech | 27.25 ft - (8306 mm) |
| Percentage LP | * 110.38 % |
| Length Perpendicular | * 10.21 ft - (3112 mm) |
| Deck Angle | * 8.76 ° |
| Area | * 153.09 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 31.75 ft - (9677 mm) |
| Foot | 14.75 ft - (4496 mm) |
| Leech | 30.167 ft - (9195 mm) |
| Percentage LP | * 150.16 % |
| Length Perpendicular | * 13.89 ft - (4234 mm) |
| Deck Angle | * 3.57 ° |
| Area | * 220.47 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30.75 ft - (9373 mm) |
| Foot | 14.75 ft - (4496 mm) |
| Leech | 29 ft - (8839 mm) |
| Percentage LP | * 149.08 % |
| Length Perpendicular | * 13.79 ft - (4203 mm) |
| Deck Angle | * 4.68 ° |
| Area | * 212 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 31.64 ft - (9644 mm) |
| Foot | * 15.33 ft - (4673 mm) |
| Leech | * 28.71 ft - (8751 mm) |
| Perc LP | * 150.05 % |
| Length Perp | * 13.88 ft - (4231 mm) |
| Deck Angle | * 9 ° |
| Area | * 219.58 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 31.64 ft - (9644 mm) |
| Foot | * 15.26 ft - (4651 mm) |
| Leech | * 29.11 ft - (8873 mm) |
| Perc LP | * 165 % |
| Area | * 362 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 31.64 ft - (9644 mm) |
| MidGirth | * 16.65 ft - (5075 mm) |
| Foot | * 16.65 ft - (5075 mm) |
| Perc LP | * 180 % |
| Area | * 448 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 18.32 ft - (5584 mm) |
| Foot | * 6.79 ft - (2070 mm) |
| Leech | * 15.44 ft - (4706 mm) |
| Perc LP | * 60 % |
| Length Perp | * 5.55 ft - (1692 mm) |
| Deck Angle | * 19.06 ° |
| Area | * 50.84 ft² |
