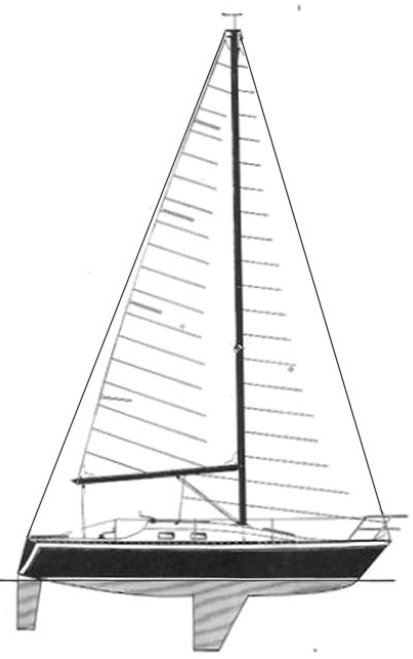

Mirage 236
Description
Introduced in 1978.
Construction Details
| Designer | Kelly |
|---|---|
| Length | 24.000 ft |
| LOA | 23.500 ft |
| LWL | 18.670 ft |
| Beam | 9.000 ft |
| Displacement | 2800 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 31.50 ft |
|---|---|
| j | 9 ft |
| p | 26.50 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 31.50 ft | 9 ft | 26.50 ft | 10 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26.5 ft - (8077 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech | * 27.79 ft - (8470 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 28 ft - (8534 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 136.75 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.21 ft - (7989 mm) |
| Foot | * 11.72 ft - (3572 mm) |
| Leech | * 23.15 ft - (7056 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 10.35 ft - (3155 mm) |
| Deck Angle | * 12.05 ° |
| Area | * 135.62 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 29.75 ft - (9068 mm) |
| Foot | 11.33 ft - (3453 mm) |
| Leech | 26.25 ft - (8001 mm) |
| Percentage LP | * 110.33 % |
| Length Perpendicular | * 9.93 ft - (3027 mm) |
| Deck Angle | * 12.82 ° |
| Area | * 147.74 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 31.12 ft - (9485 mm) |
| Foot | * 14.36 ft - (4377 mm) |
| Leech | * 29.5 ft - (8992 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.5 ft - (4115 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 210.08 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 32.5 ft - (9906 mm) |
| Foot | 15.5 ft - (4724 mm) |
| Leech | 29 ft - (8839 mm) |
| Perc LP | * 165 % |
| Area | * 378 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 31.12 ft - (9485 mm) |
| MidGirth | * 16.2 ft - (4938 mm) |
| Foot | * 16.2 ft - (4938 mm) |
| Perc LP | * 180 % |
| Area | * 429 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 16.5 ft - (5029 mm) |
| Foot | 7.25 ft - (2210 mm) |
| Leech | 13.75 ft - (4191 mm) |
| Perc LP | * 66.33 % |
| Length Perp | * 5.97 ft - (1820 mm) |
| Deck Angle | * 18.62 ° |
| Area | * 49.25 ft² |
