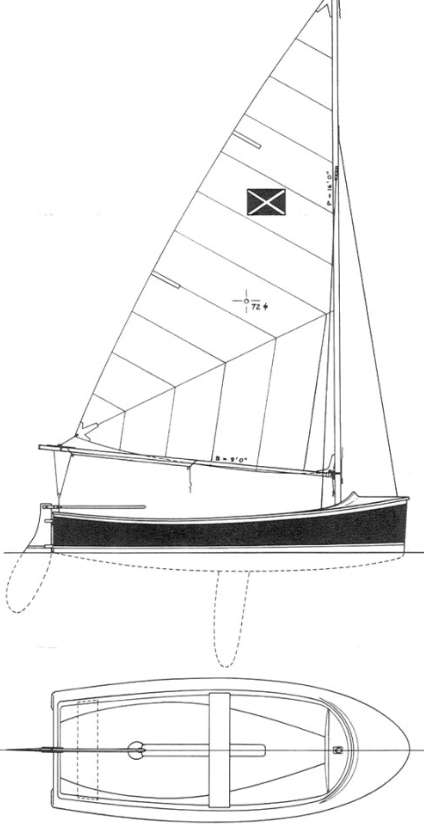

Minuteman 12
Description
The Minuteman 12 is a dinghy designed by Sparkman and Stephens. This nimble dinghy is designed for responsive sailing and easy handling, making her ideal for exploring shallow waters and protected anchorages. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Sparkman and Stephens |
|---|---|
| Length | 11.580 ft |
| LOA | 11.580 ft |
| LWL | 11.500 ft |
| Beam | 4.580 ft |
| Displacement | 195 lb |
| Max Draft | 3.000 ft |
| Min Draft | 0.300 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 16 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 16 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 16 ft - (4877 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 17.3 ft - (5273 mm) |
| Tack Ang | * 83.87 ° |
| Diag (clew/head) | 17.5 ft - (5334 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 73.91 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
