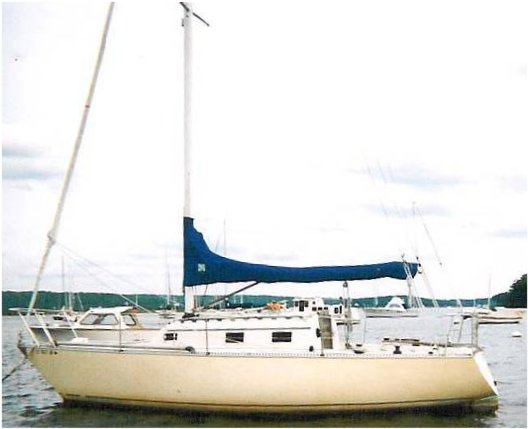

Metalmast 30
Description
The METALMAST 30 is a mid-sized cruiser designed by Peter Canning. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Peter Canning |
|---|---|
| Length | 30.000 ft |
| LOA | 30.000 ft |
| LWL | 23.750 ft |
| Beam | 10.170 ft |
| Displacement | 6500 lb |
| Max Draft | 5.500 ft |
The standard boat dimensions
| i | 36.58 ft |
|---|---|
| j | 11.50 ft |
| p | 39 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 36.58 ft | 11.50 ft | 39 ft | 13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39 ft - (11887 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech | * 40.41 ft - (12317 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 40.68 ft - (12399 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 261.88 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 30.68 ft - (9351 mm) |
| Foot | * 15.18 ft - (4627 mm) |
| Leech | * 26.72 ft - (8144 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 13.22 ft - (4029 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 202.8 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 16.083 ft - (4902 mm) |
| Leech | 33.75 ft - (10287 mm) |
| Percentage LP | * 130.52 % |
| Length Perpendicular | * 15.01 ft - (4575 mm) |
| Deck Angle | * 3.58 ° |
| Area | * 270.21 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 36.43 ft - (11104 mm) |
| Foot | * 18.53 ft - (5648 mm) |
| Leech | * 34.31 ft - (10458 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 314.18 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 36.43 ft - (11104 mm) |
| Foot | * 19.27 ft - (5873 mm) |
| Leech | * 32.75 ft - (9982 mm) |
| Perc LP | * 150 % |
| Length Perp | * 17.25 ft - (5258 mm) |
| Deck Angle | * 9.02 ° |
| Area | * 314.19 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 36.43 ft - (11104 mm) |
| Foot | * 18.97 ft - (5782 mm) |
| Leech | * 33.52 ft - (10217 mm) |
| Perc LP | * 165 % |
| Area | * 518 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 36.43 ft - (11104 mm) |
| MidGirth | * 20.7 ft - (6309 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 % |
| Area | * 641 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 21 ft - (6401 mm) |
| Foot | 8.58 ft - (2615 mm) |
| Leech | 17.33 ft - (5282 mm) |
| Perc LP | * 60 % |
| Length Perp | * 6.9 ft - (2103 mm) |
| Deck Angle | * 19.04 ° |
| Area | * 72.43 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 14.57 ft - (4441 mm) |
| Foot | * 13.4 ft - (4084 mm) |
| Leech | * 12.14 ft - (3700 mm) |
| Length Perp | * 12.14 ft - (3700 mm) |
| Tack Angle | * -25 ° |
| Area | * 76 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
