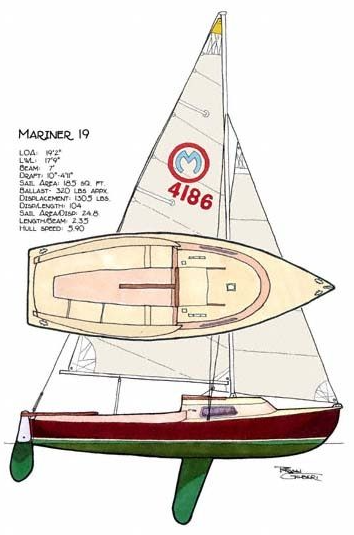

MARINER, O'DAY MARINER
Description
1305 lbs. Disp. 320 lbs. Ballast 17'9" LWL 7' Beam 10" Draft board up 4'11" Draft board down
The standard boat dimensions
| i | 20 ft |
|---|---|
| j | 6.90 ft |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 20 ft | 6.90 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech-AftHdBd | * 23.98 ft - (7309 mm) |
| Tack Ang | * 84.39 ° |
| Diag (clew/head) | 24.167 ft - (7366 mm) |
| Head (inches) | 4 in |
| Area (no Roach) | * 117.77 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 17.75 ft - (5410 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 17.75 ft - (5410 mm) |
| Length Perpendicular | * 11.7 ft - (3566 mm) |
| Area | * 103.83 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17.75 ft - (5410 mm) |
| Foot | 7.83 ft - (2387 mm) |
| Leech | 15.83 ft - (4825 mm) |
| Length Perpendicular | * 6.98 ft - (2128 mm) |
| Area | * 61.97 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 20 |
| MidGirth | 14 ft - (4267 mm) |
| Foot | 16.33 ft - (4977 mm) |
| Area | * 278 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 17.75 ft - (5410 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 17.75 ft - (5410 mm) |
| Perc LP | * 169.57 |
| Length Perp | * 11.7 |
| Deck Angle | * 1.58 ° |
| Area | * 103.83 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 20.5 ft - (6248 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 18.75 ft - (5715 mm) |
| Perc LP | * 165 |
| Area | * 192 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 17.75 ft - (5410 mm) |
| Foot | 10.75 ft - (3277 mm) |
| Leech | 16.83 ft - (5130 mm) |
| Percentage LP | * 143.77 % |
| Length Perpendicular | * 9.92 ft - (3024 mm) |
| Deck Angle | * 3.68 ° |
| Area | * 88 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
