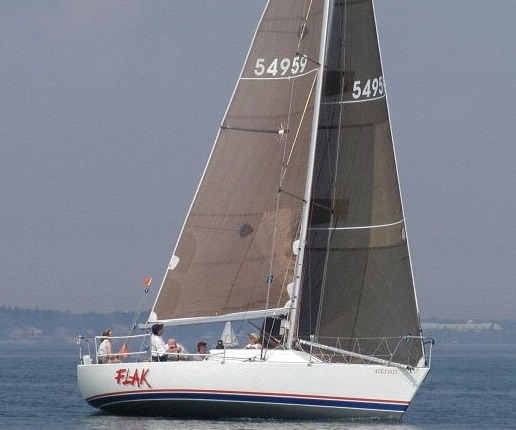

Mariah 30
Description
The Mariah 30 is a sleek, performance-oriented racer-cruiser designed for Midget Ocean Racing Club (MORC) competition under the International Offshore Rule (IOR), blending speed with modest overnighting capabilities. Penned by renowned naval architect Alan Andrews in 1991, it's a fractional sloop with a fin keel and spade rudder, emphasizing agility and upwind prowess in club racing and coastal passages. At nearly 30 feet, it's trailerable with a large rig and lightweight build, rewarding skilled crews with quick acceleration and a competitive PHRF rating (around 114–120). Production was limited to a handful of hulls by Mariah Yachts (a small California yard), making it a rare bird today—essentially an evolution of Andrews' Andrews 30, with a focus on West Coast racing fleets.
Construction Details
| Designer | Alan Andrews |
|---|---|
| Builder | Mariah Yachts |
| Length | 30.000 ft |
| LOA | 30.000 ft |
| LWL | 25.830 ft |
| Beam | 10.420 ft |
| Displacement | 7000 lb |
| Max Draft | 5.920 ft |
The standard boat dimensions
| i | 41.42 ft |
|---|---|
| j | 12 ft |
| p | 36.08 ft |
| e | 12.92 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 41.42 ft | 12 ft | 36.08 ft | 12.92 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36.08 ft - (10997 mm) |
| Foot | * 12.92 ft - (3938 mm) |
| Leech | * 37.73 ft - (11500 mm) |
| Tack Angle | * 88.02 ° |
| Diagonal | * 37.9 ft - (11552 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 232.8 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.5 ft - (10516 mm) |
| Foot | * 15.65 ft - (4770 mm) |
| Leech | * 30.42 ft - (9272 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.8 ft - (4206 mm) |
| Deck Angle | * 12 ° |
| Area | 237.98 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.97 ft - (12488 mm) |
| Foot | * 19.17 ft - (5843 mm) |
| Leech | * 38.79 ft - (11823 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 4 ° |
| Area | 368.64 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 40.97 ft - (12488 mm) |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 % |
| Area | 752.21 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
