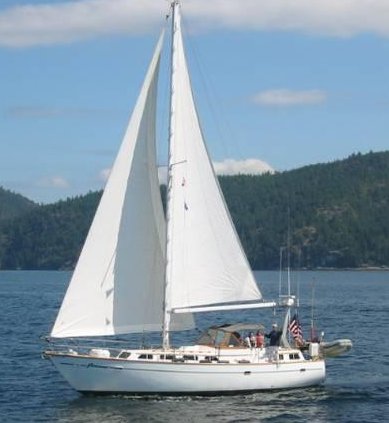

Maple Leaf 42
Description
The Maple Leaf 42 is a performance cruiser designed by Stan Huntingford. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Stan Huntingford |
|---|---|
| Length | 42.000 ft |
| LOA | 42.000 ft |
| LWL | 35.000 ft |
| Beam | 13.080 ft |
| Displacement | 24000 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 51 ft |
|---|---|
| j | 17 ft |
| p | 44.17 ft |
| e | 16.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 51 ft | 17 ft | 44.17 ft | 16.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 44.17 ft - (13463 mm) |
| Foot | * 16.5 ft - (5029 mm) |
| Leech-AftHdBd | * 46.33 ft - (14121 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 46.61 ft - (14207 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 373.8 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 51.07 ft - (15566 mm) |
| Foot | * 27.59 ft - (8409 mm) |
| Leech | * 47.89 ft - (14597 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.5 ft - (7772 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 651.14 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 50 ft - (15240 mm) |
| Foot | 27.67 ft - (8434 mm) |
| Leech | 46.5 ft - (14173 mm) |
| Percentage LP | * 149.24 % |
| Length Perpendicular | * 25.37 ft - (7733 mm) |
| Deck Angle | * 5.07 ° |
| Area | * 634.37 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 43.01 ft - (13109 mm) |
| Foot | * 22.67 ft - (6910 mm) |
| Leech | * 37.1 ft - (11308 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.55 ft - (5959 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 420.41 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 51.07 ft - (15566 mm) |
| Foot | * 28.05 ft - (8550 mm) |
| Leech | * 46.98 ft - (14320 mm) |
| Perc LP | * 165 |
| Area | * 1074 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
