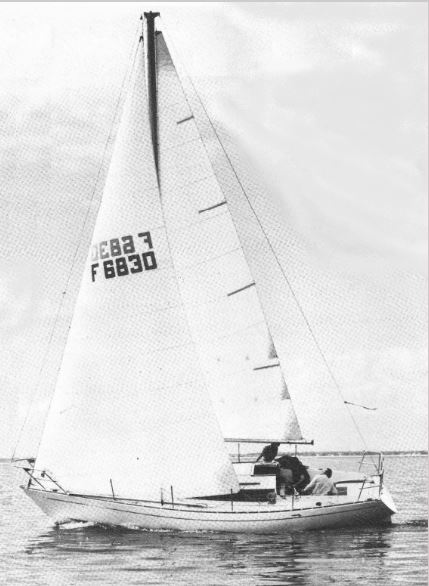

Mallard 9m
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
Construction Details
| Designer | Philippe Harle |
|---|---|
| Builder | Chantier Mallard |
| Length | 30.000 ft |
| LOA | 29.360 ft |
| LWL | 24.770 ft |
| Beam | 10.170 ft |
| Displacement | 7055 lb |
| Ballast | 3131 lb |
| Max Draft | 5.580 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 23.5 ft - (7163 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | * 24.54 ft - (7480 mm) |
| Tack Angle | * 85.16 ° |
| Diagonal | 24.75 ft - (7544 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 120.91 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12 ft - (3658 mm) |
| Foot | 5 ft - (1524 mm) |
| Leech | 10 ft - (3048 mm) |
| Length Perpendicular | * 4.09 ft - (1247 mm) |
| Area | * 24.54 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17 ft - (5182 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | 14.42 ft - (4395 mm) |
| Deck Angle | * 17.33 ° |
| Area | * 49.83 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 18.16 ft - (5535 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 17.5 ft - (5334 mm) |
| Deck Angle | * 3.06 ° |
| Area | * 85.39 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
