Malabar Sr
Description

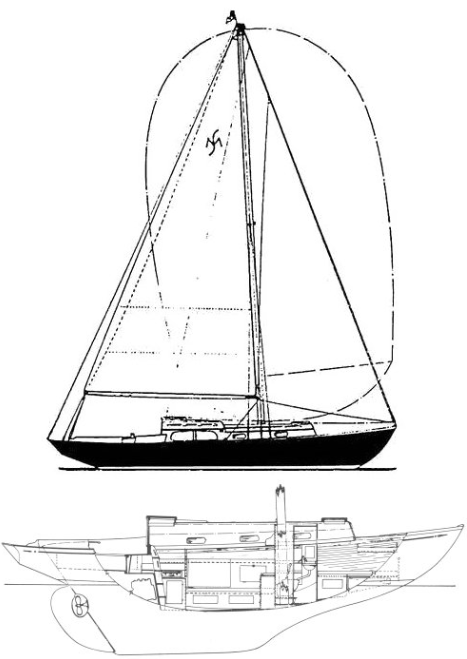

The Malabar Sr. (Alden), also known as the Malabar Senior, is a classic wooden sailboat designed by legendary American naval architect John G. Alden (Alden Design #917) and built primarily by LeComte Yachts from 1955 to 1961, with additional units by Burr Brothers and other yards in the USA, Canada, Australia, and Hong Kong (total ~50–60 built). Featuring a long keel, keel-hung rudder, spooned bow, and counter stern, it emphasizes seaworthiness and comfort for coastal and blue water cruising. Powered by an inboard diesel or gasoline auxiliary (typically 20–30 hp), with wheel steering and optional short bowsprit for roller-furling genoa over club-footed jib, it's a heavy-displacement cruiser ideal for long passages.
Construction Details
| Designer | John G. Alden |
|---|---|
| Builder | LeComte Yachts |
| Length | 33.500 ft |
| LOA | 33.070 ft |
| LWL | 27.750 ft |
| Beam | 11.420 ft |
| Max Draft | 7.000 ft |
| Min Draft | 3.900 ft |
The standard boat dimensions
| i | 40.92 ft |
|---|---|
| j | 12.71 ft |
| p | 35.83 ft |
| e | 16.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 40.92 ft | 12.71 ft | 35.83 ft | 16.50 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35.83 ft - (10921 mm) |
| Foot | * 16.5 ft - (5029 mm) |
| Leech | * 38.63 ft - (11774 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 38.92 ft - (11863 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 303.32 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.28 ft - (10449 mm) |
| Foot | * 16.74 ft - (5102 mm) |
| Leech | * 29.92 ft - (9120 mm) |
| Percentage LP | * 114.95 % |
| Length Perpendicular | * 14.61 ft - (4453 mm) |
| Deck Angle | * 11.96 ° |
| Area | * 250.43 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 34.5 ft - (10516 mm) |
| Foot | 14.67 ft - (4471 mm) |
| Leech | 30 ft - (9144 mm) |
| Percentage LP | * 100 % |
| Length Perpendicular | * 12.71 ft - (3874 mm) |
| Deck Angle | * 12.7 ° |
| Area | * 219.25 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.71 ft - (12408 mm) |
| Foot | * 20.46 ft - (6236 mm) |
| Leech | * 38.37 ft - (11695 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 19.07 ft - (5813 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 388.16 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 40.71 ft - (12408 mm) |
| Foot | * 20.97 ft - (6392 mm) |
| Leech | * 37.45 ft - (11415 mm) |
| Perc LP | * 165 % |
| Area | * 640 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 23.57 ft - (7184 mm) |
| Foot | * 9.46 ft - (2883 mm) |
| Leech | * 19.53 ft - (5953 mm) |
| Perc LP | * 60.03 % |
| Length Perp | * 7.63 ft - (2326 mm) |
| Deck Angle | * 18.98 ° |
| Area | * 89.92 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
