Luger 30 Voyager
Description

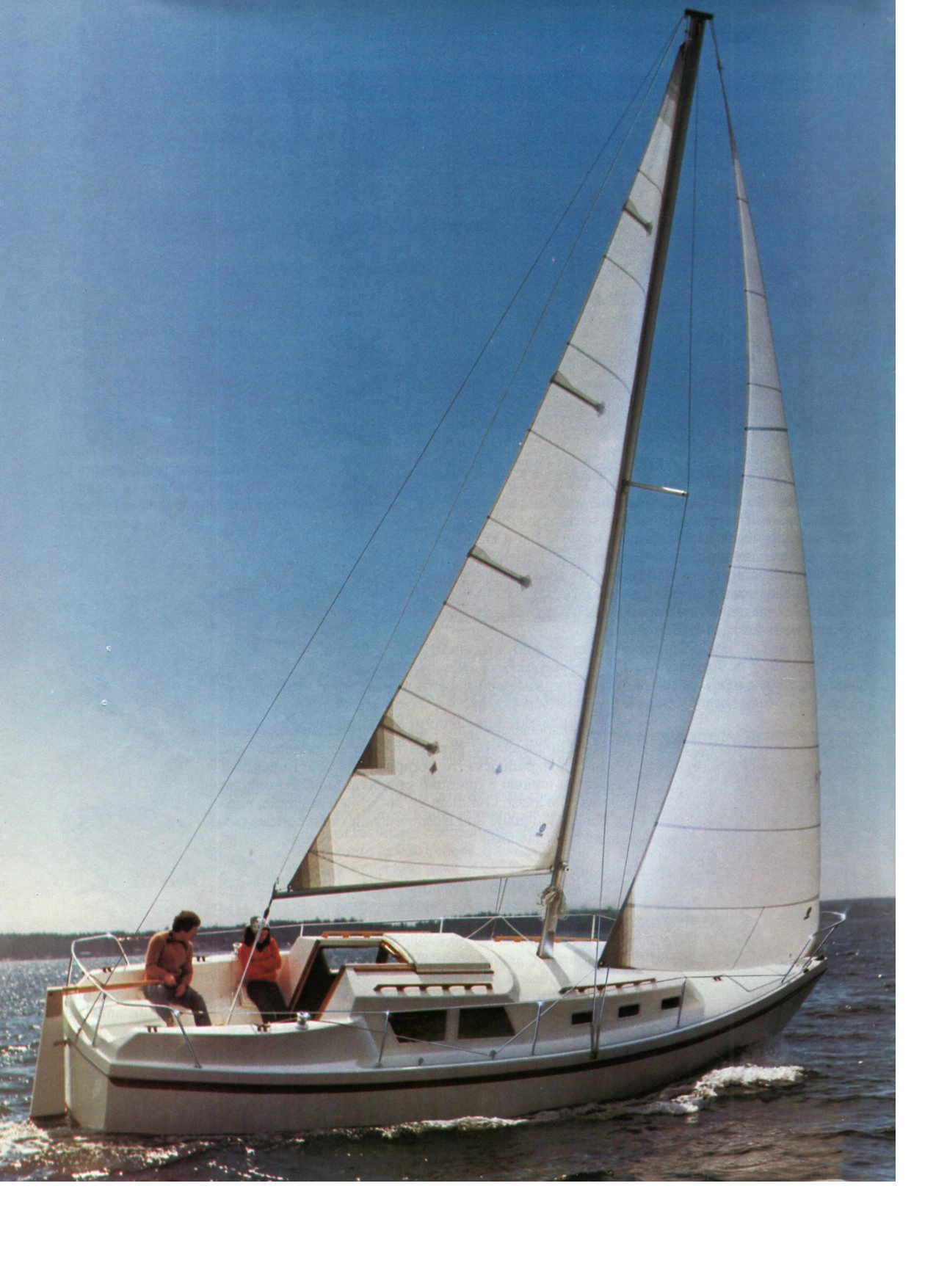

The Luger 30, more commonly known as the Voyager 30 (Luger), is a trailerable fiberglass coastal cruiser designed by Eric White and Edwin Monk Jr. and built by Luger Industries in Missouri, USA, from 1979 to 1986. Marketed as an affordable "kit boat" or home-completion project, it was aimed at budget-conscious sailors seeking a versatile weekender that could be towed, launched, and rigged single-handedly. With its shoal keel and retractable centerboard, the design prioritizes shallow-water access and easy trailering (legal width, no permits needed in most states), while offering surprising interior volume (6'4" headroom) and stability for coastal hops or lake cruising. About 50–100 were produced, often on custom Holsclaw trailers, making it a cult favorite among trailer sailors despite its "price-beater" reputation. Variants include a ketch rig for better balance in light air and an Islander 30 (Luger) model with minor tweaks.
Construction Details
| Designer | Edwin Monk Jr. |
|---|---|
| Builder | Luger Industries |
| Length | 30.000 ft |
The standard boat dimensions
| i | 34.25 ft |
|---|---|
| j | 12.33 ft |
| p | 27.25 ft |
| e | 10.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 34.25 ft | 12.33 ft | 27.25 ft | 10.83 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 27.25 ft - (8306 mm) |
| Foot | 10.83 ft - (3301 mm) |
| Leech | * 28.76 ft - (8766 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 28.97 ft - (8830 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 151.95 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.12 ft - (8876 mm) |
| Foot | * 16.68 ft - (5084 mm) |
| Leech | * 24.79 ft - (7556 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.18 ft - (4322 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 206.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 34.58 ft - (10540 mm) |
| Foot | * 20.22 ft - (6163 mm) |
| Leech | * 32.25 ft - (9830 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 18.5 ft - (5639 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 319.85 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 34.58 ft - (10540 mm) |
| Foot | * 20.34 ft - (6200 mm) |
| Leech | * 31.81 ft - (9696 mm) |
| Perc LP | * 165 % |
| Area | * 528 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 34.58 ft - (10540 mm) |
| MidGirth | * 22.19 ft - (6764 mm) |
| Foot | * 22.19 ft - (6764 mm) |
| Perc LP | * 180 % |
| Area | * 652 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
