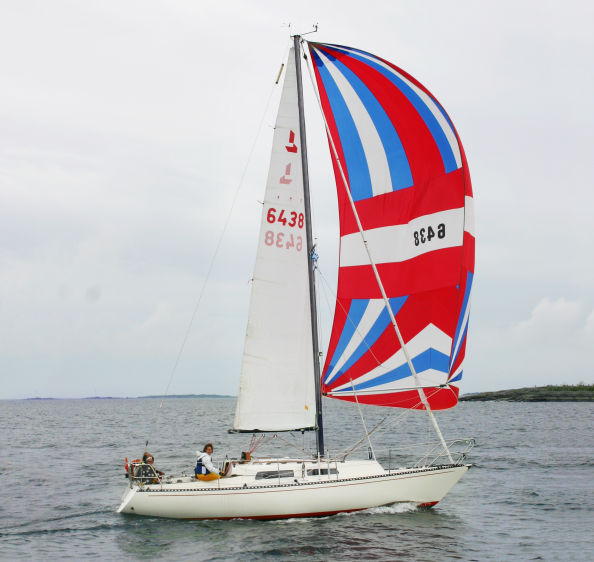

Linjett 30
Description
The Linjett 30 is a compact cruiser designed by Mats Gustafsson. Her substantial displacement provides a comfortable, sea-kindly motion, featuring variable draft for versatility in different sailing conditions. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Mats Gustafsson |
|---|---|
| Length | 8.930 ft |
| LOA | 29.360 ft |
| LWL | 23.620 ft |
| Beam | 9.840 ft |
| Displacement | 7716 lb |
| Max Draft | 5.250 ft |
| Min Draft | 6.400 ft |
The standard boat dimensions
| i | 36.06 ft |
|---|---|
| j | 10.83 ft |
| p | 30.02 ft |
| e | 9.06 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 36.06 ft | 10.83 ft | 30.02 ft | 9.06 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30.02 ft - (9150 mm) |
| Foot | * 9.06 ft - (2761 mm) |
| Leech | * 30.87 ft - (9409 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 31.05 ft - (9464 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 140.25 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 30.12 ft - (9181 mm) |
| Foot | * 14.2 ft - (4328 mm) |
| Leech | * 26.41 ft - (8050 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 12.45 ft - (3795 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 187.5 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 35.76 ft - (10900 mm) |
| Foot | * 17.36 ft - (5291 mm) |
| Leech | * 33.78 ft - (10296 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.24 ft - (4950 mm) |
| Deck Angle | * 4 ° |
| Area | * 290.34 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 35.76 ft - (10900 mm) |
| Foot | * 17.86 ft - (5444 mm) |
| Leech | * 32.9 ft - (10028 mm) |
| Perc LP | * 165 % |
| Area | * 479 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 35.76 ft - (10900 mm) |
| MidGirth | * 19.49 ft - (5941 mm) |
| Foot | * 19.49 ft - (5941 mm) |
| Perc LP | * 180 % |
| Area | * 592 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
