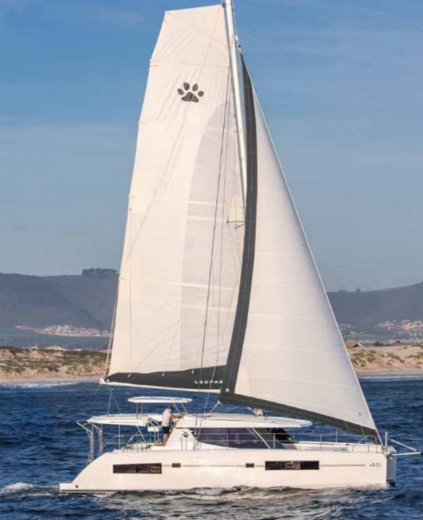

Leopard 45
Description
The Leopard 45 is a cruising yacht designed by Simonis Voogd Design. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Simonis Voogd Design |
|---|---|
| Length | 45.000 ft |
| LOA | 37.500 ft |
| LWL | 36.000 ft |
| Beam | 19.750 ft |
| Displacement | 19790 lb |
| Max Draft | 3.670 ft |
The standard boat dimensions
| i | 58.17 ft |
|---|---|
| j | 17.25 ft |
| p | 54.50 ft |
| e | 20.92 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 58.17 ft | 17.25 ft | 54.50 ft | 20.92 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 54.5 ft - (16612 mm) |
| Foot | * 20.92 ft - (6376 mm) |
| Leech | * 57.41 ft - (17499 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 57.69 ft - (17584 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 581.64 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 48.54 ft - (14795 mm) |
| Foot | * 22.58 ft - (6882 mm) |
| Leech | * 42.65 ft - (13000 mm) |
| Percentage LP | * 115.01 % |
| Length Perpendicular | * 19.84 ft - (6047 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 481.47 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 57.64 ft - (17569 mm) |
| Foot | * 27.63 ft - (8422 mm) |
| Leech | * 54.5 ft - (16612 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 25.88 ft - (7888 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 745.86 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 59 ft - (17983 mm) |
| Foot | 30 ft - (9144 mm) |
| Leech | 55 ft - (16764 mm) |
| Perc LP | * 165 % |
| Area | * 1328 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
