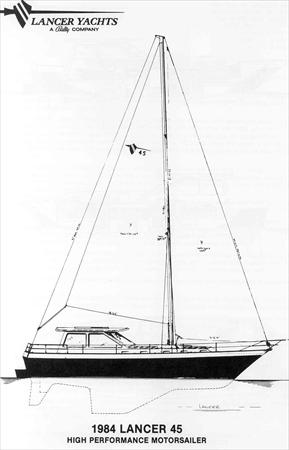

LANCER 45 MOTORSAILER
Description
24000 lbs. Disp 7000 lbs. Ballast 37'3" LWL 13'9" Beam 6' Draft std keel 4'11" Draft shoal keel
The standard boat dimensions
| i | 54.33 ft |
|---|---|
| j | 16.75 ft |
| p | 48 ft |
| e | 18.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 54.33 ft | 16.75 ft | 48 ft | 18.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 53 ft - (16154 mm) |
| Foot | 24.25 ft - (7391 mm) |
| Leech | 49.75 ft - (15164 mm) |
| Percentage LP | * 135.16 % |
| Length Perpendicular | * 22.64 ft - (6901 mm) |
| Deck Angle | * 3.88 ° |
| Area | * 599.86 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 48 ft - (14630 mm) |
| Foot | * 18.25 ft - (5563 mm) |
| Leech-AftHdBd | * 50.47 ft - (15383 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 50.75 ft - (15469 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 448.21 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 54.75 ft - (16688 mm) |
| Foot | 16.25 ft - (4953 mm) |
| Leech | 50.5 ft - (15392 mm) |
| Percentage LP | * 88.9 % |
| Length Perpendicular | * 14.89 ft - (4538 mm) |
| Deck Angle | * 6.43 ° |
| Area | * 407.75 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 54.01 ft - (16462 mm) |
| Foot | * 27.64 ft - (8425 mm) |
| Leech | * 49.69 ft - (15146 mm) |
| Perc LP | * 165 |
| Area | * 1120 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
