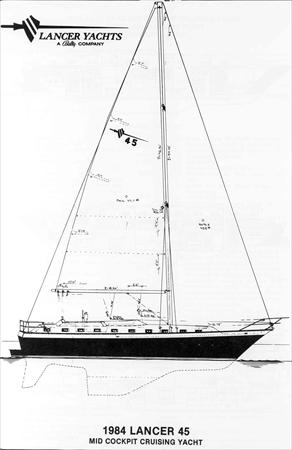

LANCER 45 MID COCKPIT
Description
24000 lbs. Disp 7000 lbs. Ballast 37'3" LWL 13'9" Beam 6' Draft std keel 4'11" Draft shoal keel
The standard boat dimensions
| i | 54.33 ft |
|---|---|
| j | 16.75 ft |
| p | 46.50 ft |
| e | 18.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 54.33 ft | 16.75 ft | 46.50 ft | 18.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 45.48 ft - (13862 mm) |
| Foot | * 22.05 ft - (6721 mm) |
| Leech | * 39.73 ft - (12110 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 19.26 ft - (5870 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 438.02 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46.5 ft - (14173 mm) |
| Foot | * 18.5 ft - (5639 mm) |
| Leech-AftHdBd | * 49.16 ft - (14984 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 49.44 ft - (15069 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 440.07 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 54.01 ft - (16462 mm) |
| Foot | * 26.93 ft - (8208 mm) |
| Leech | * 50.93 ft - (15523 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 25.12 ft - (7657 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 678.37 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 54.01 ft - (16462 mm) |
| Foot | * 27.64 ft - (8425 mm) |
| Leech | * 49.69 ft - (15146 mm) |
| Perc LP | * 165 |
| Area | * 1120 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 31.27 ft - (9531 mm) |
| Foot | * 12.44 ft - (3792 mm) |
| Leech | * 25.96 ft - (7913 mm) |
| Perc LP | * 60 |
| Length Perp | * 10.05 |
| Deck Angle | * 18.99 ° |
| Area | * 157.11 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
