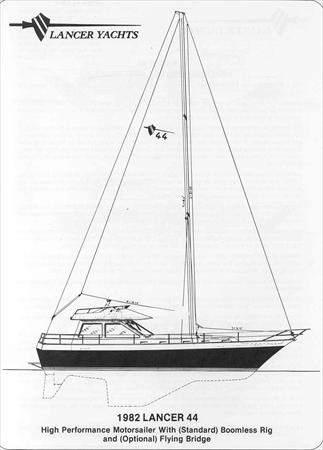

Lancer 44
Description
23000 lbs. Disp. 7000 lbs. Ballast 35'3" LWL 13'9" Beam 6' Draft Std Keel 4'11" Draft shoal Keel 60' mast height above DWL
Construction Details
| Designer | Herb David |
|---|---|
| Length | 44.167 ft |
| LOA | 44.160 ft |
| LWL | 35.250 ft |
| Beam | 13.750 ft |
| Displacement | 21000 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 54.33 ft |
|---|---|
| j | 16.75 ft |
| p | 48 ft |
| e | 18.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 54.33 ft | 16.75 ft | 48 ft | 18.25 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 48 ft - (14630 mm) |
| Foot | * 18.25 ft - (5563 mm) |
| Leech | * 50.47 ft - (15383 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 50.75 ft - (15469 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 448.21 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 54.5 ft - (16612 mm) |
| Foot | 16.5 ft - (5029 mm) |
| Leech | 51 ft - (15545 mm) |
| Percentage LP | * 92 % |
| Length Perpendicular | * 15.41 ft - (4697 mm) |
| Deck Angle | * 3.76 ° |
| Area | * 420.05 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 24.5 ft - (7468 mm) |
| Leech | 48.5 ft - (14783 mm) |
| Percentage LP | * 135.7 % |
| Length Perpendicular | * 22.73 ft - (6928 mm) |
| Deck Angle | * 4.8 ° |
| Area | * 590.87 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 54.01 ft - (16462 mm) |
| Foot | * 27.64 ft - (8425 mm) |
| Leech | * 49.69 ft - (15146 mm) |
| Perc LP | * 165 % |
| Area | * 1120 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
