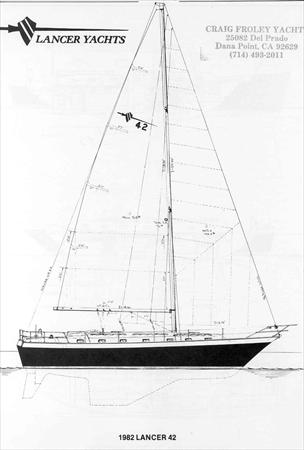

LANCER 42
Description
21000 lbs. Disp. 7000 lbs. Ballast 35'3" LWL 13'9" Beam 6' Draft std keel 4'11" Draft shoal keel
Construction Details
| Designer | Herb David |
|---|---|
| Length | 42.580 ft |
| LOA | 40.000 ft |
| LWL | 33.670 ft |
| Beam | 12.000 ft |
| Displacement | 15500 lb |
| Max Draft | 6.300 ft |
The standard boat dimensions
| i | 54.50 ft |
|---|---|
| j | 16.75 ft |
| p | 48.50 ft |
| e | 18.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 54.50 ft | 16.75 ft | 48.50 ft | 18.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 48.5 ft - (14783 mm) |
| Foot | * 18.5 ft - (5639 mm) |
| Leech-AftHdBd | * 51.02 ft - (15551 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 51.3 ft - (15636 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 458.95 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 54.17 ft - (16511 mm) |
| Foot | * 26.92 ft - (8205 mm) |
| Leech | * 51.09 ft - (15572 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 25.12 ft - (7657 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 680.34 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 45.61 ft - (13902 mm) |
| Foot | * 22.04 ft - (6718 mm) |
| Leech | * 39.86 ft - (12149 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 19.26 ft - (5870 mm) |
| Deck Angle | * 12 ° |
| Area | * 439.25 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 54.17 ft - (16511 mm) |
| Foot | * 27.64 ft - (8425 mm) |
| Leech | * 49.84 ft - (15191 mm) |
| Perc LP | * 165 |
| Area | * 1123 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 45.61 ft - (13902 mm) |
| Foot | * 22.04 ft - (6718 mm) |
| Leech | * 39.86 ft - (12149 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 19.26 ft - (5870 mm) |
| Deck Angle | * 12 ° |
| Area | * 439.25 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
