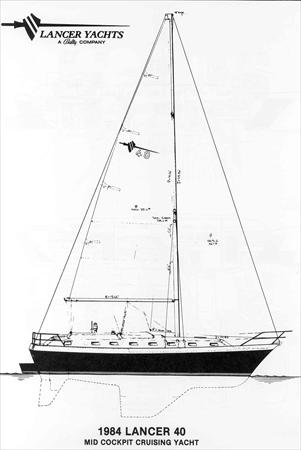

LANCER 40 MID COCKPIT
Description
15500 lbs. Disp. 4500 lbs. Ballast 33'8" LWL 12' Beam 6'3" Draft std keel 4'11" Draft shoal keel
The standard boat dimensions
| i | 49.50 ft |
|---|---|
| j | 14.83 ft |
| p | 41.50 ft |
| e | 15.66 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 49.50 ft | 14.83 ft | 41.50 ft | 15.66 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 41.34 ft - (12600 mm) |
| Foot | * 19.43 ft - (5922 mm) |
| Leech | * 36.28 ft - (11058 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 17.05 ft - (5197 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 352.44 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 48 ft - (14630 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 44.58 ft - (13588 mm) |
| Percentage LP | * 125.08 % |
| Length Perpendicular | * 18.55 ft - (5654 mm) |
| Deck Angle | * 5.24 ° |
| Area | * 445.31 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 50 ft - (15240 mm) |
| Foot | 25 ft - (7620 mm) |
| Leech | 47 ft - (14326 mm) |
| Perc LP | * 165 |
| Area | * 938 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 49.09 ft - (14963 mm) |
| Foot | * 24.68 ft - (7522 mm) |
| Leech | * 44.37 ft - (13524 mm) |
| Perc LP | * 149.97 |
| Length Perp | * 22.24 |
| Deck Angle | * 9.01 ° |
| Area | * 545.91 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 28.42 ft - (8662 mm) |
| Foot | * 10.96 ft - (3341 mm) |
| Leech | * 23.75 ft - (7239 mm) |
| Perc LP | * 60.01 |
| Length Perp | * 8.9 |
| Deck Angle | * 19.05 ° |
| Area | * 126.43 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.09 ft - (14963 mm) |
| Foot | * 23.77 ft - (7245 mm) |
| Leech | * 46.38 ft - (14137 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 22.24 ft - (6779 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 545.88 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 41.5 ft - (12649 mm) |
| Foot | * 15.66 ft - (4773 mm) |
| Leech-AftHdBd | * 43.56 ft - (13277 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 43.84 ft - (13362 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 333.8 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
