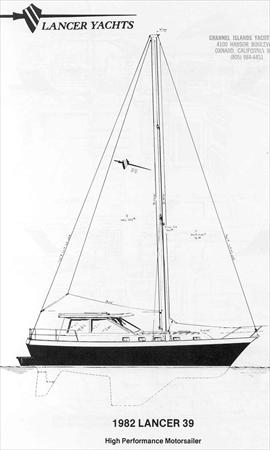

LANCER 39 MOTORSAILOR
Description
16000 lbs. Disp 3500 lbs. Ballast 31'8" LWL 12' Beam 6'3" Draft std keel 4'11" Draft shoal Keel
The standard boat dimensions
| i | 49.50 ft |
|---|---|
| j | 14.83 ft |
| p | 43.50 ft |
| e | 15.42 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 49.50 ft | 14.83 ft | 43.50 ft | 15.42 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.5 ft - (13259 mm) |
| Foot | * 15.42 ft - (4700 mm) |
| Leech-AftHdBd | * 45.36 ft - (13826 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 45.64 ft - (13911 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 344.6 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 49.09 ft - (14963 mm) |
| Foot | * 24.47 ft - (7458 mm) |
| Leech | * 45.16 ft - (13765 mm) |
| Perc LP | * 165 |
| Area | * 901 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 50 ft - (15240 mm) |
| Foot | 14.75 ft - (4496 mm) |
| Leech | 47 ft - (14326 mm) |
| Percentage LP | * 93.39 % |
| Length Perpendicular | * 13.85 ft - (4221 mm) |
| Deck Angle | * 3.49 ° |
| Area | * 346.14 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
