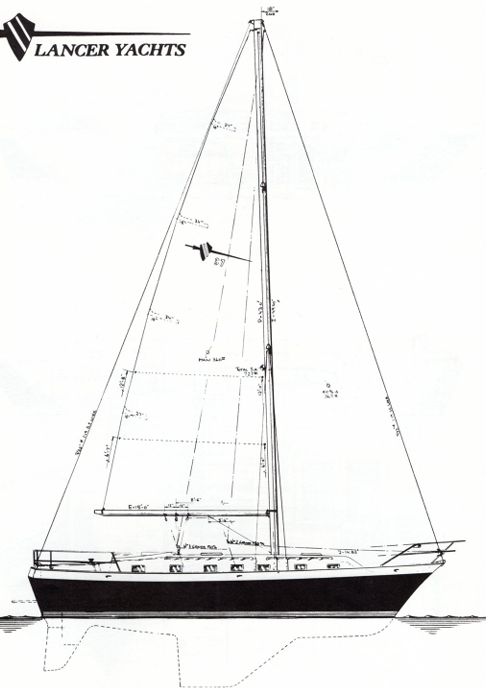

LANCER 37
Description
15000 lbs. Disp. 4000 lbs. Ballast 31'8" LWL 12' Beam 6'3" Draft std Keel 4'11" Draft shoal Keel
Construction Details
| Designer | Herb David |
|---|---|
| Length | 37.000 ft |
| LOA | 29.500 ft |
| LWL | 22.500 ft |
| Beam | 9.830 ft |
| Displacement | 7000 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 49.50 ft |
|---|---|
| j | 14.83 ft |
| p | 43 ft |
| e | 15 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 49.50 ft | 14.83 ft | 43 ft | 15 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43 ft - (13106 mm) |
| Foot | * 15 ft - (4572 mm) |
| Leech-AftHdBd | * 44.76 ft - (13643 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 45.04 ft - (13728 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 331.6 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.09 ft - (14963 mm) |
| Foot | * 23.77 ft - (7245 mm) |
| Leech | * 46.38 ft - (14137 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 22.24 ft - (6779 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 545.88 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 41.34 ft - (12600 mm) |
| Foot | * 19.43 ft - (5922 mm) |
| Leech | * 36.28 ft - (11058 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 17.05 ft - (5197 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 352.44 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 49.09 ft - (14963 mm) |
| Foot | * 24.47 ft - (7458 mm) |
| Leech | * 45.16 ft - (13765 mm) |
| Perc LP | * 165 |
| Area | * 901 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 49.09 ft - (14963 mm) |
| Foot | * 24.68 ft - (7522 mm) |
| Leech | * 44.37 ft - (13524 mm) |
| Perc LP | * 149.97 |
| Length Perp | * 22.24 |
| Deck Angle | * 9.01 ° |
| Area | * 545.91 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 28.42 ft - (8662 mm) |
| Foot | * 10.96 ft - (3341 mm) |
| Leech | * 23.75 ft - (7239 mm) |
| Perc LP | * 60.01 |
| Length Perp | * 8.9 |
| Deck Angle | * 19.05 ° |
| Area | * 126.43 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
