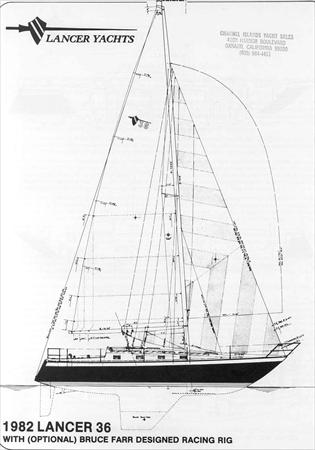

Lancer 36 Farr Rig
Description
10500 lbs. Disp. 4000 lbs. Ballast 29' LWL 11'9" Beam 6'2" Draft std keel 4'11" Draft shoal keel
Construction Details
| Designer | Bill Lee/Bruce Farr |
|---|---|
| Length | 36.167 ft |
| LOA | 36.170 ft |
| LWL | 29.000 ft |
| Beam | 11.750 ft |
| Displacement | 10500 lb |
| Max Draft | 6.200 ft |
The standard boat dimensions
| i | 42.16 ft |
|---|---|
| j | 13.66 ft |
| p | 45.33 ft |
| e | 16.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 42.16 ft | 13.66 ft | 45.33 ft | 16.25 ft | - | - | - | - |
Documents
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45.33 ft - (13817 mm) |
| Foot | * 16.25 ft - (4953 mm) |
| Leech | * 47.34 ft - (14429 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 47.62 ft - (14515 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 377.91 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.45 ft - (10805 mm) |
| Foot | * 18.13 ft - (5526 mm) |
| Leech | * 30.72 ft - (9363 mm) |
| Percentage LP | * 115.01 % |
| Length Perpendicular | * 15.71 ft - (4788 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 278.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.1 ft - (12832 mm) |
| Foot | * 22.09 ft - (6733 mm) |
| Leech | * 39.57 ft - (12061 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.49 ft - (6245 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 431.35 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 42.1 ft - (12832 mm) |
| Foot | * 22.99 ft - (7007 mm) |
| Leech | * 37.72 ft - (11497 mm) |
| Perc LP | * 150 % |
| Length Perp | * 20.49 ft - (6245 mm) |
| Deck Angle | * 9.03 ° |
| Area | * 431.28 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 43.75 ft - (13335 mm) |
| Foot | 24.58 ft - (7492 mm) |
| Leech | 40.5 ft - (12344 mm) |
| Perc LP | * 165 % |
| Area | * 807 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 42.1 ft - (12832 mm) |
| Foot | * 22.54 ft - (6870 mm) |
| Leech | * 38.73 ft - (11805 mm) |
| Perc LP | * 165 % |
| Area | * 712 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 42.1 ft - (12832 mm) |
| MidGirth | * 24.59 ft - (7495 mm) |
| Foot | * 24.59 ft - (7495 mm) |
| Perc LP | * 180 % |
| Area | * 880 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 24.37 ft - (7428 mm) |
| Foot | * 10.26 ft - (3127 mm) |
| Leech | * 19.97 ft - (6087 mm) |
| Perc LP | * 60.03 % |
| Length Perp | * 8.2 ft - (2499 mm) |
| Deck Angle | * 18.96 ° |
| Area | * 99.95 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
