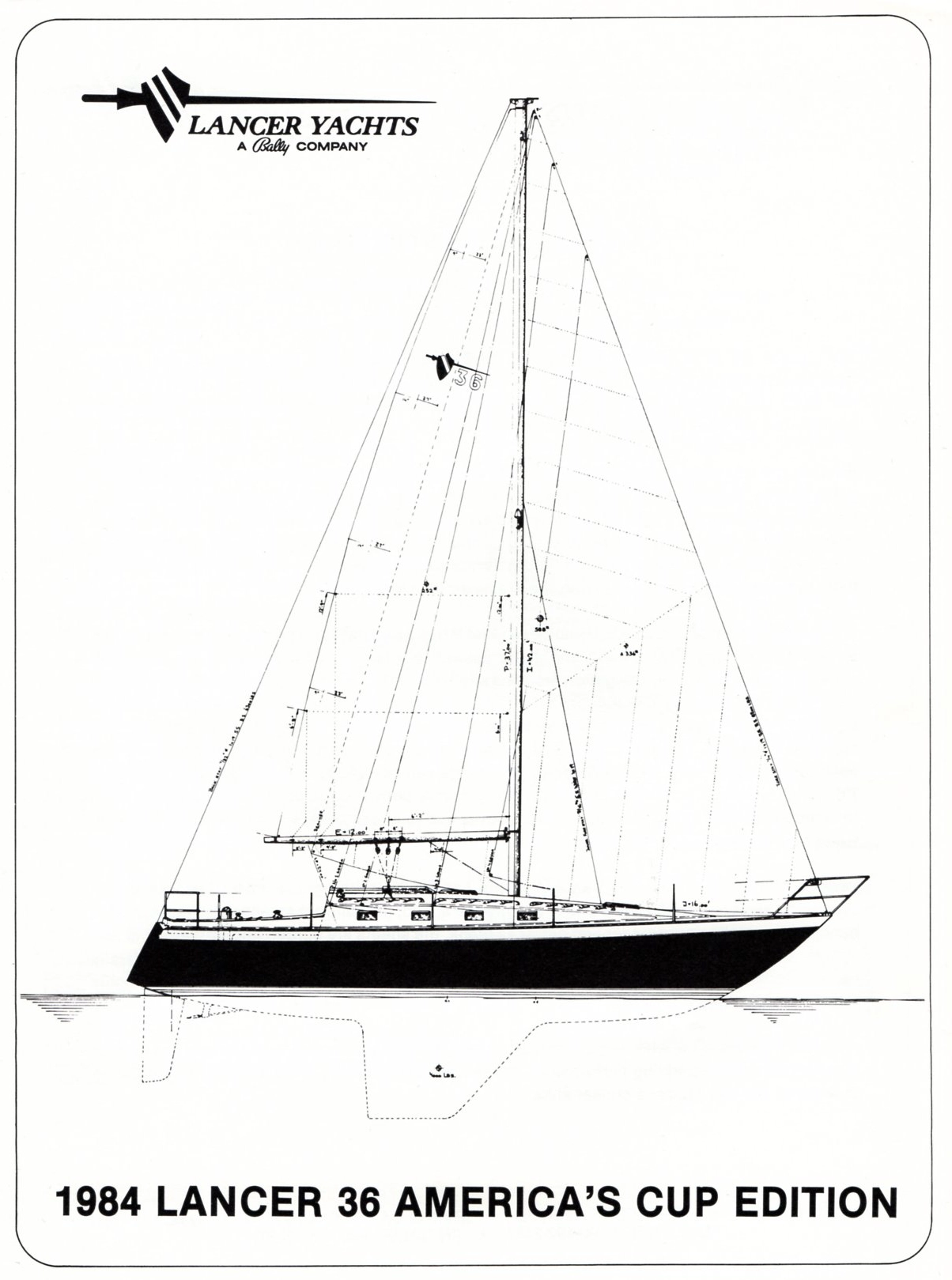

Lancer 36 America's Cup
Description
10500 lbs. Disp. 4000 lbs. Ballast 29' LWL 11'9" Beam 6'2" Draft std keel 4'11" Draft shoal keel
The standard boat dimensions
| i | 42 ft |
|---|---|
| j | 16 ft |
| p | 37 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 42 ft | 16 ft | 37 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37 ft - (11278 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 38.26 ft - (11662 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 38.5 ft - (11735 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 228.89 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.96 ft - (10961 mm) |
| Foot | * 21.9 ft - (6675 mm) |
| Leech | * 30.31 ft - (9238 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.4 ft - (5608 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 330.85 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.7 ft - (13015 mm) |
| Foot | * 26.45 ft - (8062 mm) |
| Leech | * 39.67 ft - (12091 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24 ft - (7315 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 512.43 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 42.7 ft - (13015 mm) |
| Foot | * 27.67 ft - (8434 mm) |
| Leech | * 37.59 ft - (11457 mm) |
| Perc LP | * 150 % |
| Length Perp | * 24 ft - (7315 mm) |
| Deck Angle | * 8.99 ° |
| Area | * 512.41 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 42.7 ft - (13015 mm) |
| Foot | * 26.4 ft - (8047 mm) |
| Leech | * 39.28 ft - (11973 mm) |
| Perc LP | * 165 % |
| Area | * 845 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 42.7 ft - (13015 mm) |
| MidGirth | * 28.8 ft - (8778 mm) |
| Foot | * 28.8 ft - (8778 mm) |
| Perc LP | * 180 % |
| Area | * 1045 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 24.72 ft - (7535 mm) |
| Foot | * 12.51 ft - (3813 mm) |
| Leech | * 19.26 ft - (5870 mm) |
| Perc LP | * 60 % |
| Length Perp | * 9.6 ft - (2926 mm) |
| Deck Angle | * 19.03 ° |
| Area | * 118.64 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
