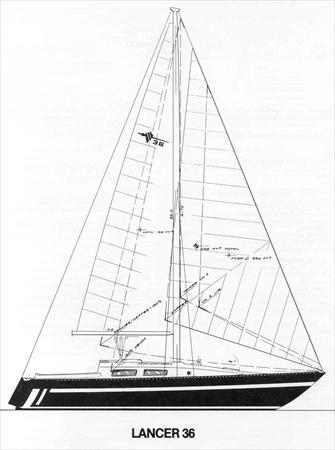

Lancer 36 1977 First Design
Description
10500 lbs. Disp 4000 lbs. Ballast 28'4" LWL 11' Beam 5'11" Draft
The standard boat dimensions
| i | 41.75 ft |
|---|---|
| j | 16.10 ft |
| p | 35 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 41.75 ft | 16.10 ft | 35 ft | 11 ft | - | - | - | - |
Documents
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35 ft - (10668 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech | * 36.08 ft - (10997 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 36.32 ft - (11070 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 199 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.8 ft - (10912 mm) |
| Foot | * 22.1 ft - (6736 mm) |
| Leech | * 30.11 ft - (9178 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 18.52 ft - (5645 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 331.51 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.51 ft - (12957 mm) |
| Foot | * 26.67 ft - (8129 mm) |
| Leech | * 39.45 ft - (12024 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24.15 ft - (7361 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 513.31 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 42.51 ft - (12957 mm) |
| Foot | * 27.91 ft - (8507 mm) |
| Leech | * 37.37 ft - (11390 mm) |
| Perc LP | * 150 % |
| Length Perp | * 24.15 ft - (7361 mm) |
| Deck Angle | * 9 ° |
| Area | * 513.3 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 42.51 ft - (12957 mm) |
| Foot | * 26.56 ft - (8095 mm) |
| Leech | * 39.11 ft - (11921 mm) |
| Perc LP | * 165 % |
| Area | * 847 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 42.51 ft - (12957 mm) |
| MidGirth | * 28.98 ft - (8833 mm) |
| Foot | * 28.98 ft - (8833 mm) |
| Perc LP | * 180 % |
| Area | * 1047 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
